Features:

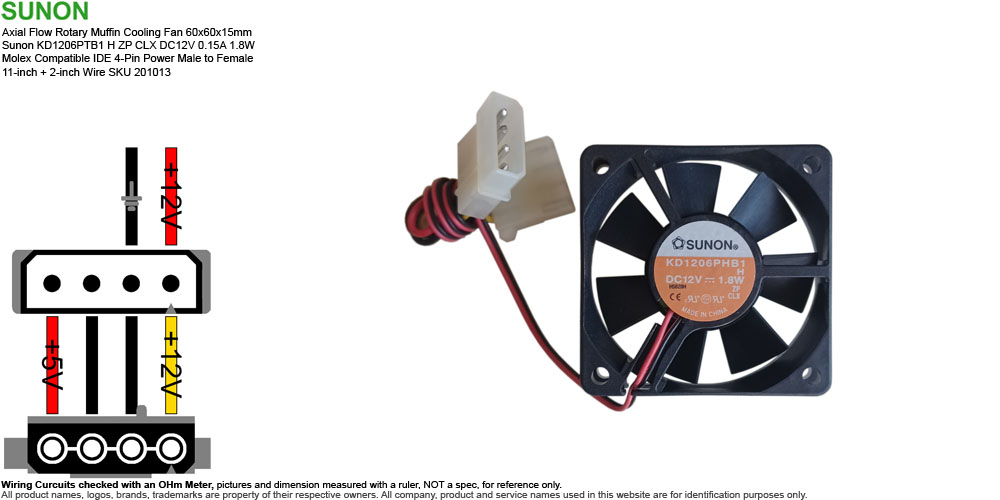

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm Sunon KD1206PTB1 H ZP CLX H5828H DC12V 0.15A 1.8W Molex Compatible IDE 4-Pin Power Male to Female 11-inch + 2-inch Wire SKU 201013
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD1206PTB1 H ZP CLX H5828H
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Dual Ball Bearing
  • Speed: 4300~4500 RPM
  • Air Flow: 22.5~23.5 CFM
  • Noise Level: 33.5~34.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 13-inch
    • 11-inch: from Fan to 4-pin Male Connector
    • 2-inch: from 4-pin Male Connector to 4-pin Female Connector
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1206PTB1 is a high-performance, industrial-grade 60mm DC brushless axial cooling fan. It is designed for maximum thermal reliability in compact electronics.
  • KD1206PTB1 H ZP CLX H5828H Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Motor series.
    • '12' Voltage Rating 12 Volts DC operational rating.
    • '06' Frame Size 60mm width & height dimensions.
    • 'P' Frame Profile, 15mm Casing Depth.
    • 'T' Structural Design, Tube axial / Thru-vane housing style.
    • 'B' Bearing Type, Dual Ball Bearings for industrial continuous duty.
    • '1' Speed Profile, Medium Speed performance tier classification
    • 'H' Design Revision High Output / Component and process upgraded suffix
    • 'ZP' Impedance Protected (prevents the motor from burning out if the blades get physically blocked.
    • 'CLX' Custom manufacturer/customer configuration code
    • 'H5828H' OEM Part Number, Specific manufacturer part number designating the 4-pin dual pass-through Molex wire harness assembly.
  • Serial Numbers Available or Sold:
    • SN 0083102 New
    • SN 0083103 New
