Features:

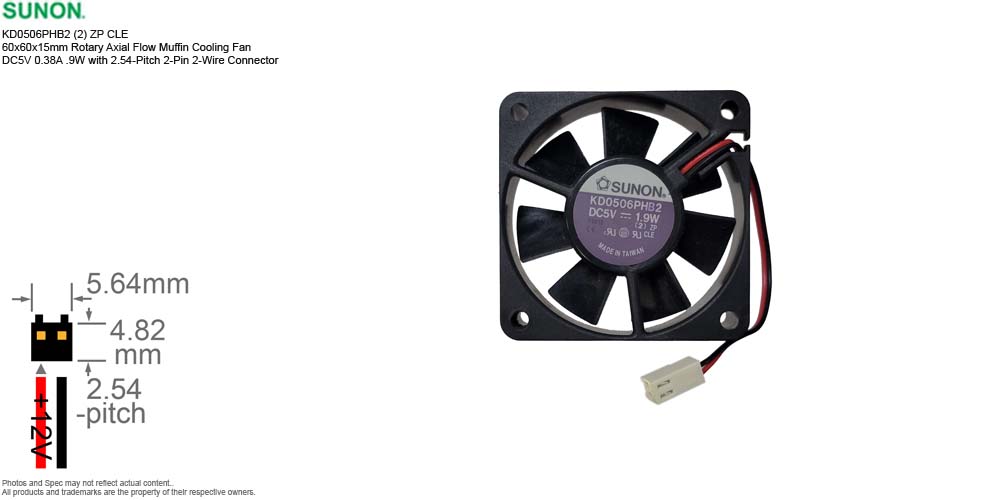

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm Sunon KD0506PHB2 (2) ZP CLE DC5V 0.38A 1.8W 2.54mm Pitch 2-Pin 2-Conductor Connector 2.5-inch Wire SKU 210831
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD0506PHB2 (2) ZP CLE
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC5V 0.38A 1.8W
  • Bearing: Dual Ball Bearing
  • Speed: 3800 RPM +/- 15~20%
  • Air Flow: 18~18.5 CFM
  • Noise Level: 31.5~32 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 2.5-inch
• Weight: 1.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD0506PHB2 is a 5V DC, high-efficiency brushless axial cooling fan designed primarily for compact electronic enclosures.
  • KD0506PHB2 (2) ZP CLE Y9910 Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Motor series.
    • '05' Rated voltage indicator (5 Volts DC).
    • '06' Frame dimension width/length (60mm x 60mm).
    • 'P' Housing frame thickness designation (15mm thickness).
    • 'H' High-efficiency, low-power-consumption motor profile.
    • 'B' Built with a robust Ball Bearing architecture.
    • '2' Medium relative performance/speed rating.
    • '(2)' Sunon’s second-generation structural and magnetic motor revision.
    • 'ZP' Motor features Impedance Protection. If the blade is accidentally blocked, the motor restricts current flow dynamically to prevent overheating or electrical fires.
    • 'CLE' Customer-specific or regional sales routing designation.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'Y9910' Internal factory batch code utilized exclusively for assembly line tracing and manufacturing quality audits
  • Serial Numbers Available or Sold:
    • Batch Y9910, SN 0090768 Used
    • Batch Y9910, SN 0090769 Used
