Features:

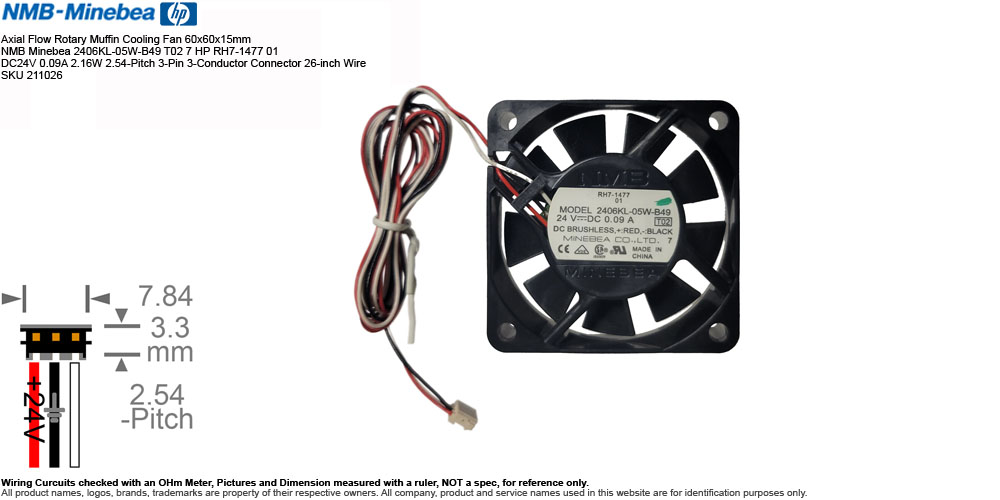

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm NMB Minebea 2406KL-05W-B49 T02 7 HP RH7-1477 01 DC24V 0.09A 2.16W 2.54-Pitch 3-Pin 3-Conductor Connector 26-inch Wire SKU 211026
• Manufacturer: NMB
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor:
  • NMB / Minebea
  • HP
  • Canon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • NMB Minebea 2406KL-05W-B49 T02 7
  • HP / Canon RH7-1477 01
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC24V 0.09A 2.16W
  • Bearing: Dual Ball Bearing
  • Speed: 4100 RPM +/- 10%
  • Air Flow: 15.9 CFM
  • Noise Level: 31.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 26-inch
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The NMB Minebea 2406KL-05W-B49 is a high-performance 24V DC axial cooling fan. It measures 60mm x 60mm x 15mm. It is specifically engineered as a factory-standard replacement part for commercial office equipment, specifically HP LaserJet and Canon printing or copying platforms.
  • 2406KL-05W-B49 T02 7 RH7-1477 01 Part Number Breakdown:
    • '24' Indicates a frame width and height of 2.4 inches (approx. 60mm).
    • '06' Indicates a slim housing profile depth of 0.6 inches (approx. 15mm).
    • 'KL' Designates the internal aerodynamic blade design structure and motor architecture family.
    • '05W' Specifies a 24V DC operating configuration ("05" maps to 24V; "W" denotes standard wire lead connections).
    • 'B' Designates a Ball Bearing assembly system.
    • '4' Indicates the performance/velocity classification tier (Scale ranges from 1 to 5; "3" denotes a medium-high output configuration).
    • '9' Identifies a specialty three-wire configuration that routes an integrated thermal resistor control signal or specialized tachometer line.
    • 'T02' A manufacturer-specific modification code signifying customized wire lengths, terminal connector styles, or customized speed profiles tailored to client specifications
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '7' at the very end indicates a manufacturing lot control number, a specific revision tier, or factory line identifier
      • 'RH7-1477 01' is an OEM part number utilized by HP and Canon for a specific internal DC cooling fan configuration. The physical equipment under the label is actually manufactured by NMB Technologies, mapped to the primary manufacturer part number 2406KL-05W-B49
  • Pulled from HP Laserjet 1200 Laser Printer
  • Serial Number Available or Sold:
    • SN 0099254 Used

• Manufacturer: Minebea Co., Ltd.
• Brand Name or Distributor: NMB / Minebea / HP
• Model:
  • NMB 2406KL-05W-B49 T02 7
  • HP RH7-1477 01
• Brief Spec.:
  • Fan Size: 60x60x15mm
  • Power Rating: DC 24V 0.09A 2.16W
  • Bearing: Dual Ball Bearing
  • Speed: 4100~4200 RPM
  • Air Flow: 15.9 CFM
  • Noise Level: 31~32 dBA
  • Wire Length: 26-inch
  • Connection: 2.54-Pitch 3-Pin 3-Conductor Connector
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For used with or pulled from: (for reference only)
  • Pulled from HP Laserjet 1200 Laser Printer
  • Serial Number Available or Sold:
    • SN ------- Used
