Features:

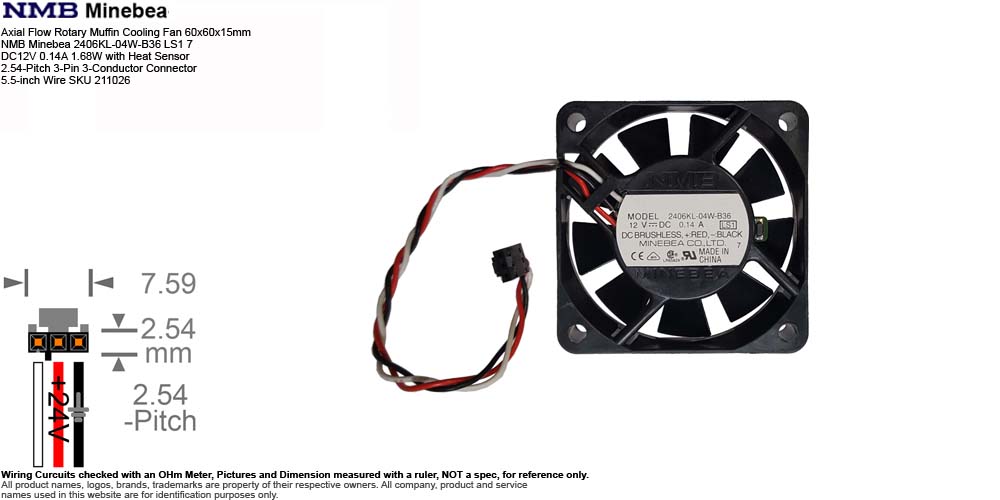

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm NMB Minebea 2406KL-04W-B36 LS1 7 DC12V 0.14A 1.68W with Heat Sensor 2.54-Pitch 3-Pin 3-Conductor Connector 5.5-inch Wire SKU 210209
• Manufacturer: NMB
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB / Minebea
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • NMB Minebea 2406KL-04W-B36 LS1 7
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC12V 0.14A 1.68W with Heat Sensor
  • Bearing: Dual Ball Bearing
  • Speed: 3600 RPM +/- 10%
  • Air Flow: 17.0 CFM
  • Noise Level: 12 dB(A) at minimum speed / 28-31 dB(A) at maximum load
  • Material: Black Plastic UL 94V-0 Flame Retardant
    • Frame Housing: Black Plastic Casing compliant with UL94V-0 flammability standards
    • Impeller Blades: Black Plastic Blades compliant with UL94V-0 flammability standards
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 5.5-inch
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The NMB Minebea 2406KL-04W-B36 is a high-performance, compact DC axial cooling fan manufactured by NMB Technologies (Minebea Mitsumi). It measures 60mm x 60mm x 15mm and operates on a 12V DC power supply. This specific variant features an integrated thermal sensor for dynamic speed control, frequently utilized in legacy IT hardware like Dell OptiPlex desktop computing systems.
  • 2406KL-04W-B36 LS1 7 Part Number Breakdown:
    • '24' Indicates a frame width and height of 2.4 inches (approx. 60mm).
    • '06' Indicates a slim housing profile depth of 0.6 inches (approx. 15mm).
    • 'KL' Designates the internal aerodynamic blade design structure and motor architecture family.
    • '04W' Indicates 12V DC operation ("04" signifies 12V; "W" specifies standard wire leads termination).
    • 'B' Designates a Ball Bearing assembly system.
    • '3' Indicates the performance/velocity classification tier (Scale ranges from 1 to 5; "3" denotes a medium-high output configuration).
    • '6' Identifies a specialty three-wire configuration that routes an integrated thermal resistor control signal or specialized tachometer line.
    • 'LS1' A manufacturer-specific modification code signifying customized wire lengths, terminal connector styles, or customized speed profiles tailored to client specifications
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '7' at the very end indicates a manufacturing lot control number, a specific revision tier, or factory line identifier
  • Pulled from HP Laserjet 1200 Laser Printer
  • Serial Number Available or Sold:
    • SN 0099820 Used
