Features:

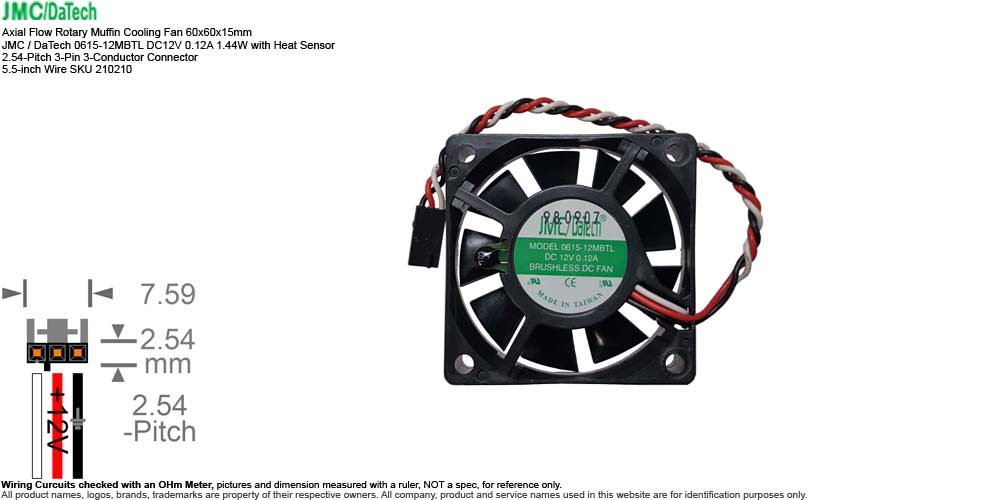

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm JMC / DaTech 0615-12MBTL DC12V 0.12A 1.44W with Heat Sensor 2.54-Pitch 3-Pin 3-Conductor Connector 5.5-inch Wire SKU 210210
• Manufacturer: JMC Products
• Brand: or Distributor:
  • JMC / Datech
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • JMC / DaTech 0615-12MBTL
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC12V 0.12A 1.44W with Heat Sensor
  • Bearing: Dual Ball Bearing
  • Speed: 3500 RPM +/- 10%
  • Air Flow: 13~15 CFM
  • Noise Level: 29 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 5.5-inch
• Weight: 1.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The JMC / DaTech 0615-12MBTL is a 5V DC, high-efficiency brushless axial cooling fan designed primarily for compact electronic enclosures.
  • 0615-12MBTL 98.09.07 Part Number Breakdown:
    • '06' Frame Width 60 mm frame diameter
    • '15' Frame Thickness 15 mm thin profile
    • '-12' Operating Voltage 12V DC nominal power requirements
    • 'M' Speed Profile Medium airflow configuration (vs. Low or High)
    • 'B' Bearing Type Dual Ball Bearing system
    • 'T' Function Option Built-in Temperature sensor/thermal control loop
    • 'L' Termination Type Leads / Wire connector configuration
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '98.09.07' This stamp follows the YY.MM.DD (Year.Month.Day) manufacturing format, indicating this specific fan batch was produced on September 7, 1998.
  • Serial Numbers Available or Sold:
    • SN 0089603 Used
    • SN 0089604 Used
    • SN 0089604 Used
