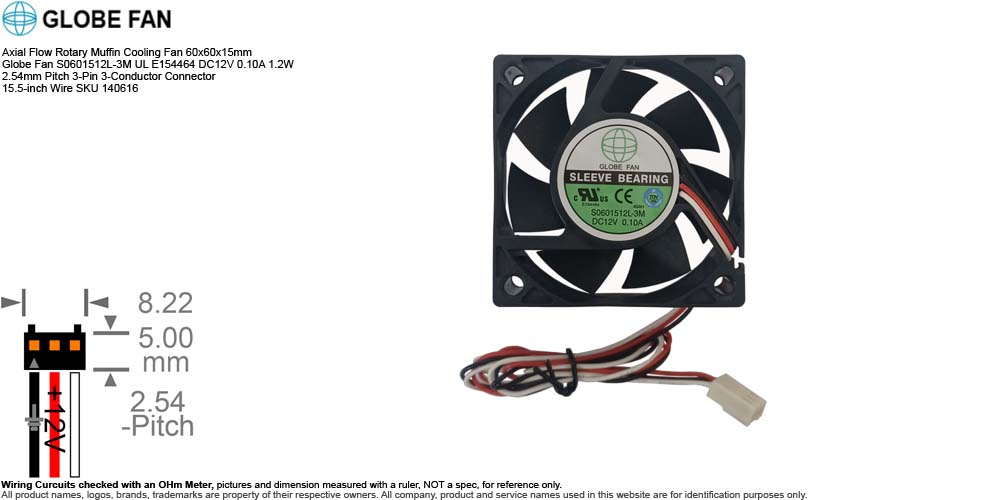

Axial Flow Rotary Muffin Cooling Fan 60x60x15mm
Globe Fan S0601512L-3M UL E154464 DC12V 0.10A 1.2W
2.54mm Pitch 3-Pin 3-Conductor Connector
15.5-inch Wire SKU 140616
FN24-6015-xxx

Features:

  • Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm Globe Fan S0601512L-3M UL E154464 DC12V 0.10A 1.2W 2.54mm Pitch 3-Pin 3-Conductor Connector 15.5-inch Wire SKU 140616
  • Manufacturer:
    • Globe Fan Technology Co., Ltd.
  • Brand: or Distributor:
    • Globe Fan
  • Model: (and/or Compatible, Equivalent, Interchangeable)
    • Globe Fan S0601512L-3M
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 60x60x15mm
    • Power Rating: DC12V 0.10A 1.2W
    • Bearing: Sleeve Bearing
    • Speed: 3500 RPM
    • Air Flow: 15~22 CFM
    • Noise Level: 24~28 dB(A)
    • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
    • Wire Length: 15.5-inch
  • Weight: 1.5 oz (estimated shipping weight 6 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The Globe Fan S0601512L-3M is a low-profile, 60mm DC axial cooling fan manufactured by GLOBEFAN. It is widely used for internal components requiring compact, low-noise thermal management.
    • S0601512L-3M Part Number Breakdown:
      • 'S' Sleeve Bearing system
      • '060' 60mm frame width / height
      • '15' 15mm frame thickness
      • '12' 12V DC rated operating voltage
      • 'L' Low Speed / Low performance curve (optimized for quiet operation)
      • '-3M' 3-Wire interface with standard 3-pin motherboard connector
    • Serial Number Available or Sold:
      • SN 0112164 Used
