Features:

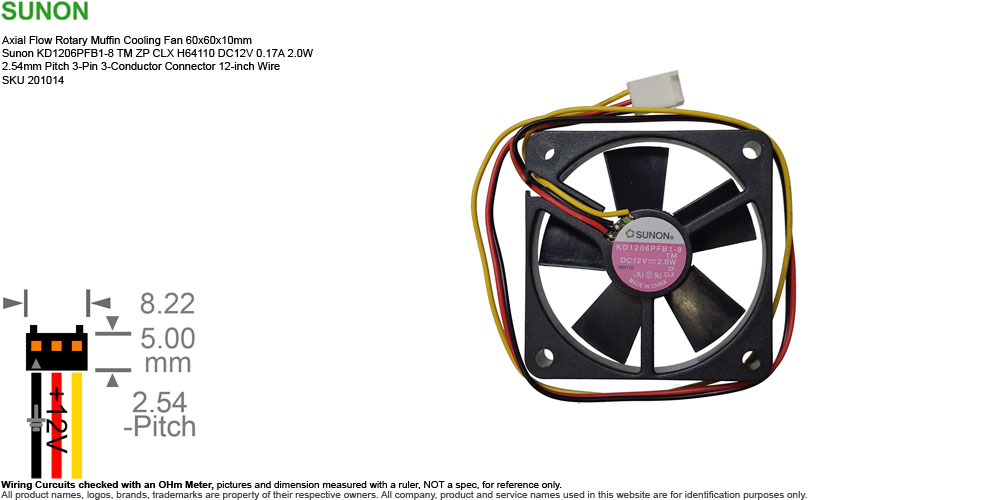

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x10mm Sunon KD1206PFB1-8 ZP CLX H64110 DC12V 0.17A 2.0W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 201014
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD1206PFB1-8 TM ZP CLX H64110
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x10mm
  • Power Rating: DC12V 0.17A 2.0W
  • Bearing: Dual Ball Bearing
  • Speed: 4800 RPM
  • Air Flow: 19 CFM
  • Noise Level: 34.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 12-inch
• Weight: 0.9 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1206PFB1-8 is not a consumer product sold in retail stores; instead, it is an industrial component custom-ordered for specific commercial hardware. It has a uniquely thin 60x60x10mm frame paired with a custom-wired 3-pin connector, it is specifically utilized inside Compact Networking Arrays, Network Storage Enclosures, Medical Equipment, Legacy SFF Desktops.
  • KD1206PFB1-8 TM ZP CLX H64110 Part Number Breakdown:
    • 'K' Motor Series Sunon Standard DC Brushless Fan Series
    • 'D' Motor Design Patented Single-Coil Motor Layout
    • '12' Operating Voltage 12 Volts DC
    • '06' Frame Size 60mm x 60mm Outer Footprint
    • 'P' Frame Material PBT Thermoplastic
    • 'F' Frame Thickness 10mm Ultra-Thin Profile
    • 'B' Bearing System High-Endurance Dual Ball Bearing
    • '1' Rotational Speed "High" Performance Band
    • '-8' Motor Poles 8-Pole Stator Configuration
    • 'TM ZP CLX' Supplementary Code Process upgrade tracking for low-voltage start circuit, UV glue, or production batches
    • 'H64110' Custom Customer Code Suffix identifying custom wire lengths (12 inches), a dedicated 3-pin connector layout, and precise pinouts.
  • Serial Numbers Available or Sold:
    • SN 0090140 New
