Features:

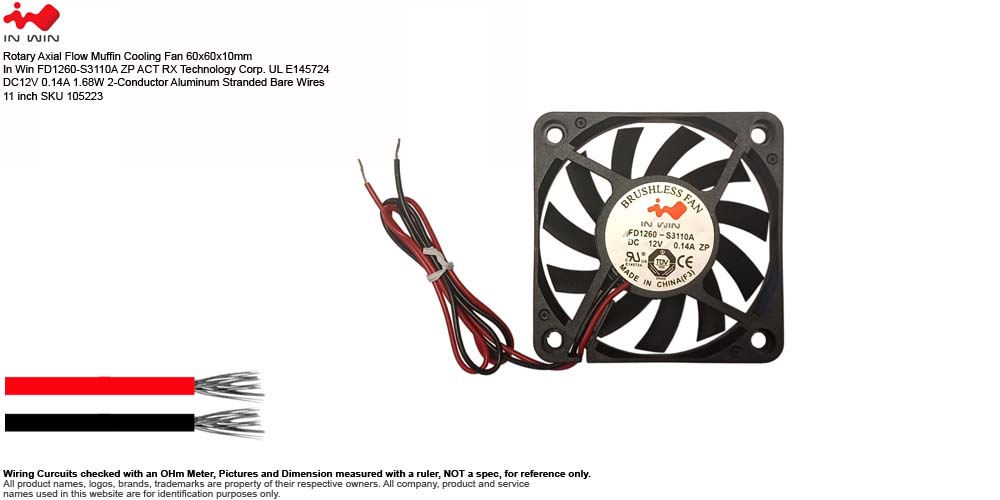

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x10mm In Win FD1260-S3110A ZP ACT RX Technology Corp. UL E145724 DC12V 0.14A 1.68W 2-Conductor Stranded Bare Wires 11 inch SKU 105223
• Manufacturer: ACT RX Technology Corp.
• Brand or Distributor:
  • In Win Development, Inc.
• Model:
  • In Win FD1260-S3110A ZP
  • ACT RX Technology UL E145724
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x10mm
  • Power Rating: DC12V 0.14A 1.68W
  • Bearing: Sleeve Bearing
  • Speed: 3200~3600 RPM
  • Air Flow: 12~15 CFM
  • Noise Level: 26~28 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wires
  • Overall Wire Length: 11-inch
• Weight: 1.0 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from In Win SFF Computer Cases. May have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The In Win FD1260-S3110A is an industrial-grade, low-profile 12V DC axial cooling fan manufactured for In Win Development Inc. It features a compact 60mm x 60mm x 10mm (6010) ultra-thin footprint tailored for specialized space-constrained computer cases, network switches, and electronic assemblies.
  • FD1260-S3110A ZP Part Number Breakdown:
    • 'FD' Fan Type Fan DC (Direct Current brushless architecture)
    • '12' Input Voltage 12 Volts DC
    • '60' Frame Size 60mm x 60mm Outer Width/Height Dimensions
    • '-S' Bearing Type Sleeve Bearing System (or synthetic long-life option)
    • '3' Performance Speed Medium-to-High RPM performance range allocation
    • '11' Thickness Profile 10mm Slim Housing Depth (often indexed between 10mm–15mm variants)
    • '0A' Pin / Design Suffix Rev-A custom design layout detailing specific wiring or header casing
    • 'ZP' Circuit ProtectionImpedance Protected / Auto-Restart protection against locked rotors
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '3RAMFS011500' is an internal proprietary component part number (internal SKU) for supply chain tracking.
  • Pulled from Unsold In Win Small Form Factor Computer Cases.
  • Serial Number Available or Sold:
    • Lot Number 3RAMFS011500 SN 0089109 Used
