Features:

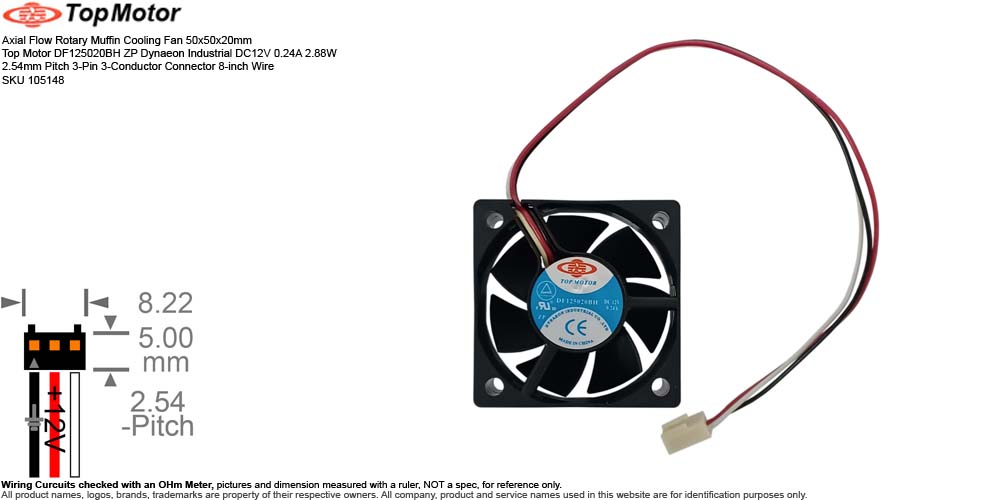

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x20mm Top Motor DF125020BH ZP Dynaeon Industrial DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 8-inch Wire SKU 105148
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • Top Motor DF125020BH ZP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x20mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Dual Ball Bearing
  • Speed: 5800 RPM +/- 10%
  • Air Flow: 17.6 CFM
  • Noise Level: 32 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 8-inch
• Weight: 1.1 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF125020BH is a high-performance 50mm x 50mm x 20mm DC axial cooling fan operating at 5800 RPM with an airflow profile of 17.6 CFM and a noise rating of 32 dBA.
  • DF125020BH ZP Part Number Breakdown:
    • 'D' Motor Type: DC Brushless
    • 'F' Fan Type: Frame Axial Fan
    • '12' Voltage Rating: 12V DC
    • '50' Frame Width/Height: 50 mm
    • '20' Frame Thickness: 20 mm
    • 'B' Bearing Type: Ball (B / Dual Ball)
    • 'H' Speed Level: High (H)
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'ZP' Manufacturing code
  • Serial Number Available or Sold:
    • SN 0112071~0112079 New
