Features:

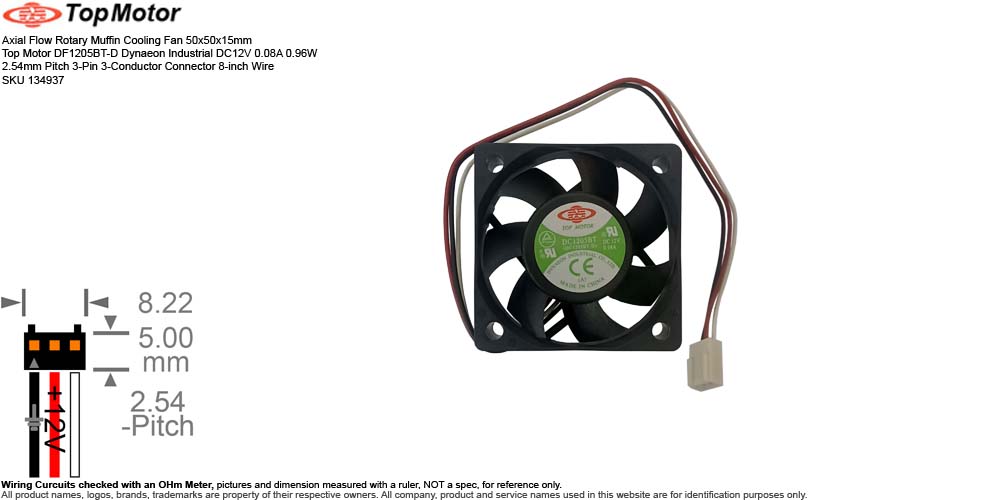

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x15mm Top Motor DF1205BT-D Dynaeon Industrial DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 8-inch Wire SKU 134937
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • Top Motor DF1205BT
  • Top Motor DF1205BT-D
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x15mm
  • Power Rating: DC12V 0.08A 0.96W
  • Bearing: Dual Ball Bearing
  • Speed: 4500~5000 RPM
  • Air Flow: 11~14 CFM
  • Noise Level: 28~32 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 8-inch
• Weight: 1.0 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF1205BT is a compact, reliable 12V DC cooling fan manufactured by Dynaeon (Top Motor), specifically designed for precise thermal management in localized electronic components like CPUs, compact network appliances, and industrial instrumentation.
  • DF1205BT (DF1205BT-D) Part Number Breakdown:
    • 'DF' DC Fan series (brushless motor design).
    • '12' 12 Volts DC operating voltage.
    • '05' 50mm square frame footprint.
    • 'B' Medium-High speed tier (Below "H" High, Above "L" Low).
    • 'T' Twin Ball Bearing / Ball Bearing system.
    • '-D' Specific internal build revision or tailored terminal connection scheme.
  • Serial Number Available or Sold:
    • SN 0092018 New
    • SN 0092019 New
    • SN 0092020 New
