Features:

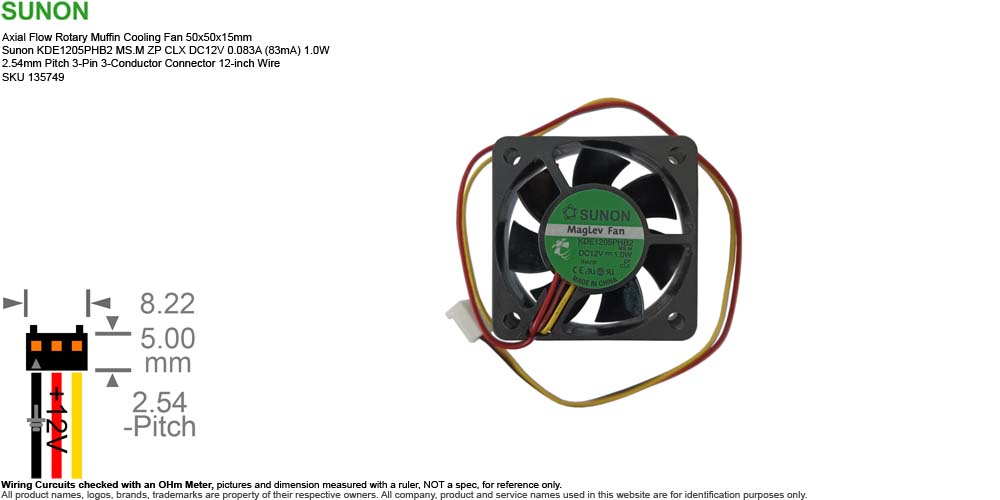

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x15mm Sunon KDE1205PHB2 MS.M ZP CLX DC12V 0.083A (83mA) 1.0W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 135749
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KDE1205PHB2 MS.M ZP CLX
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x15mm
  • Power Rating: DC12V 0.083A (83mA) 1.0W
  • Bearing: Dual Ball Bearing
  • Speed: 4700 RPM
  • Air Flow: 12.7~13 CFM
  • Noise Level: 27.8~30 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 12-inch
• Weight: 1.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KDE1205PHB2 MS.M ZP CLX is a highly efficient 50x50x15 mm DC brushless cooling fan engineered for targeted thermal management in compact spaces.
  • KDE1205PHB2 MS.M ZP CLX H4A20P Part Number Breakdown:
    • 'KDE' Series designation (Standard DC Brushless Fan series)
    • '12' Operating Voltage 12 Volts DC
    • '05' Frame Size — 50mm length/width
    • 'P' Frame Material PBT Thermoplastic
    • 'H' Frame Thickness 15mm
    • 'B' Ball Bearing System
    • '2' Medium Speed profile
    • 'MS' Traditional motor configuration or specific magnetic platform designation
    • 'M' Confirms Middle-tier factory-set speed configuration
    • 'ZP' Impedance protected or custom client feature code
    • 'CLX' Specific custom lead wire termination, insulation, or connector pinout layout
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'H4A20P' Proprietary factory manufacturing lot, internal wiring length tracking, and target sales destination code
  • Serial Numbers Available or Sold:
    • SN 0089748 New
    • SN 0089749 New
