Features:

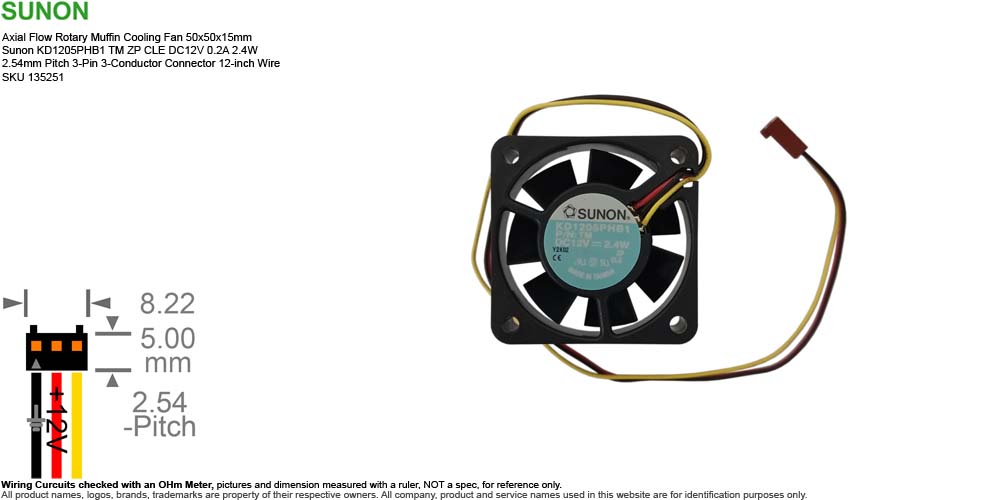

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x15mm Sunon KD1205PHB1 TM ZP CLE DC12V 0.2A 2.4W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 135251
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD1205PHB1 TM ZP CLE
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x15mm
  • Power Rating: DC12V 0.2A 2.4W
  • Bearing: Ball Bearing
  • Speed: 5800 RPM
  • Air Flow: 17 CFM
  • Noise Level: 33~34 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT / PA (Polyamide / Nylon) glass fiber reinforced environmental-grade plastic
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 12-inch
• Weight: 1.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1205PHB1 is not a consumer product sold in retail stores; instead, it is an industrial component custom-ordered for specific commercial hardware. It has a uniquely thin 50x50x15mm frame paired with a custom-wired 3-pin connector, it is specifically utilized inside Compact Networking Arrays, Network Storage Enclosures, Medical Equipment, Legacy SFF Desktops.
  • KD1205PHB1 TM ZP CLE Y2K02 Part Number Breakdown:
    • 'KD' Series designation (Standard DC Brushless Fan series)
    • '12' Operating Voltage 12 Volts DC
    • '05' Frame Size — 50mm length/width
    • 'P' Frame Material PBT Thermoplastic
    • 'H' Frame Thickness 15mm
    • 'B' Ball Bearing System
    • '1' Rotational Speed "High" Performance Band
    • 'TM ZP' Thermal Management / Zone Protection (often indicating automatic restart and impedance protection features built into the motor)
    • 'CLE' A factory assembly line or customer-specific certification code.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'Y2K02' The compliance revision marker proving the unit is clear of Year 2000 component anomalies
  • Serial Numbers Available or Sold:
    • SN 0100401 New
    • SN 0100402 New
