Features:

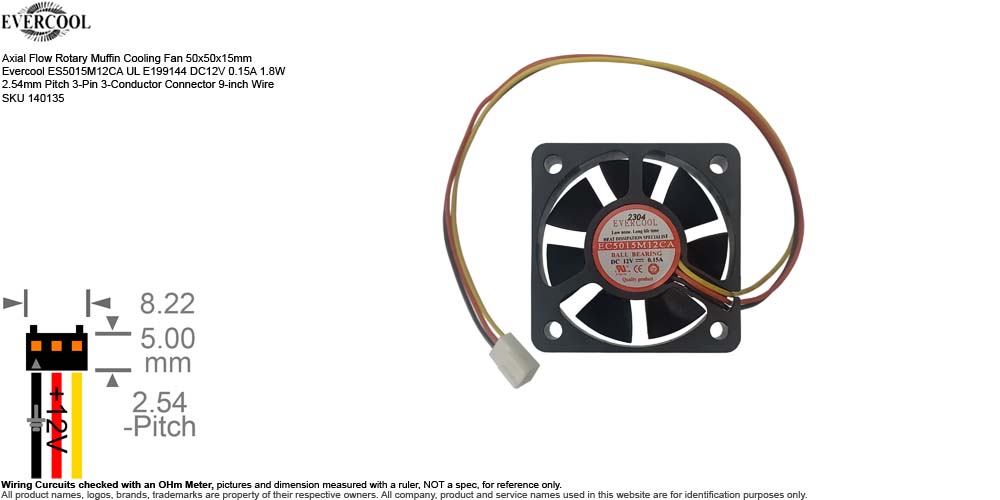

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x15mm Evercool ES5015M12CA UL E199144 DC12V 0.15A 1.8W 2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch Wire SKU 140135
• Manufacturer: EVERCOOL Thermal Co., Ltd.
• Brand and Distributor:
  • Evercool
• Model: (Compatible, Equivalent, & Interchangeable)
  • Evercool ES5015M12CA
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x15mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Dual Ball Bearing
  • Speed: 4500 RPM
  • Air Flow: 10.83 to 12.66 CFM
  • Noise Level: 29 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 9-inch
• Weight: 1.5 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Evercool ES5015M12CA is a compact, reliable 12V DC cooling fan manufactured by Dynaeon (Top Motor), specifically designed for precise thermal management in localized electronic components like CPUs, compact network appliances, and industrial instrumentation.
  • ES5015M12CA 2304 Part Number Breakdown:
    • 'EC/ES' Evercool DC Axial Fan Series
    • '5015' 50mm x 50mm Frame Width with a 15mm Thickness
    • 'M' Medium Speed Configuration (4500 RPM)
    • '12' 12 Volts DC Operating Power
    • 'C' Dual Ball Bearing System
    • 'A/E' 3-Pin / 3-Wire Connector Tail with Tachometer Speed Monitoring
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '2304' The year of manufacture (2023), the calendar week of manufacture (4th week of the year, which corresponds to late January 2023).
  • Serial Number Available or Sold:
    • SN 0092021 New
    • SN 0092022 New
    • SN 0092023 New
    • SN 0092024 New
    • SN 0092025 New
    • SN 0092026 New
    • SN 0092027 New
