Features:

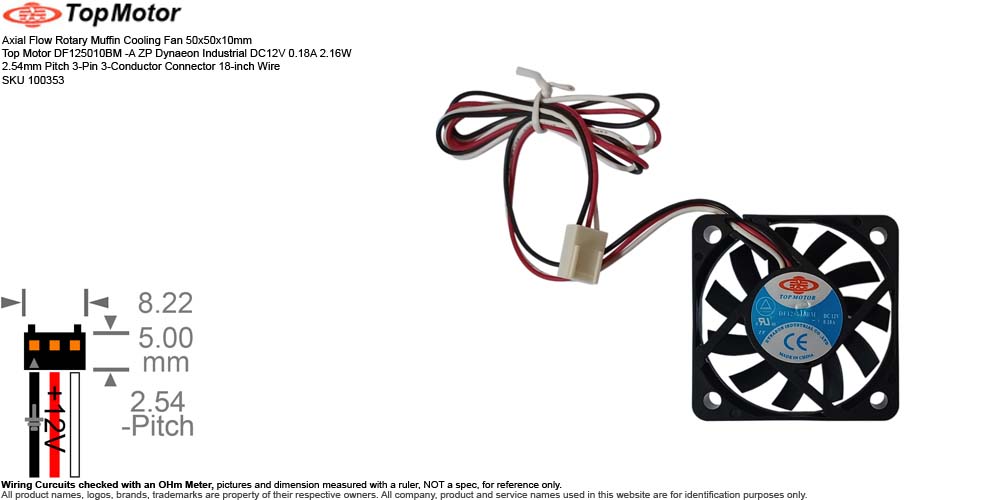

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x10mm Top Motor DF125010BM -A ZP Dynaeon Industrial DC12V 0.18A 2.16W 2.54mm Pitch 3-Pin 3-Conductor Connector 18-inch Wire SKU 100353
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • Top Motor DF125010BM -A ZP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x10mm
  • Power Rating: DC12V 0.18A 2.16W
  • Bearing: Dual Ball Bearing
  • Speed: 4500 RPM
  • Air Flow: 9.3 CFM
  • Noise Level: 28 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 18-inch
• Weight: 1.0 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF125010BM is a high-reliability 12V DC miniature axial cooling fan measuring 50mm x 50mm x 10mm. It features a robust dual ball bearing system optimized for continuous duty cycles in tight enclosures.
  • DF125010BM -A ZP Part Number Breakdown:
    • 'DF' Fan Type DC Axial Flow Fan
    • '12' Operating Voltage 12 Volts DC
    • '50' Frame Diameter 50 mm Width/Height
    • '10' Frame Thickness 10 mm Depth
    • 'B' Bearing Designation Dual Ball Bearing (Two Ball)
    • 'M' Speed Profile Designation Medium Speed profile
    • '-A' Generation / Revision Revision A mechanical assembly
    • 'ZP' Protection / Functional Code Impedance Protected (with auto-restart circuitry)
  • Serial Number Available or Sold:
    • SN 0092028 New
