Features:

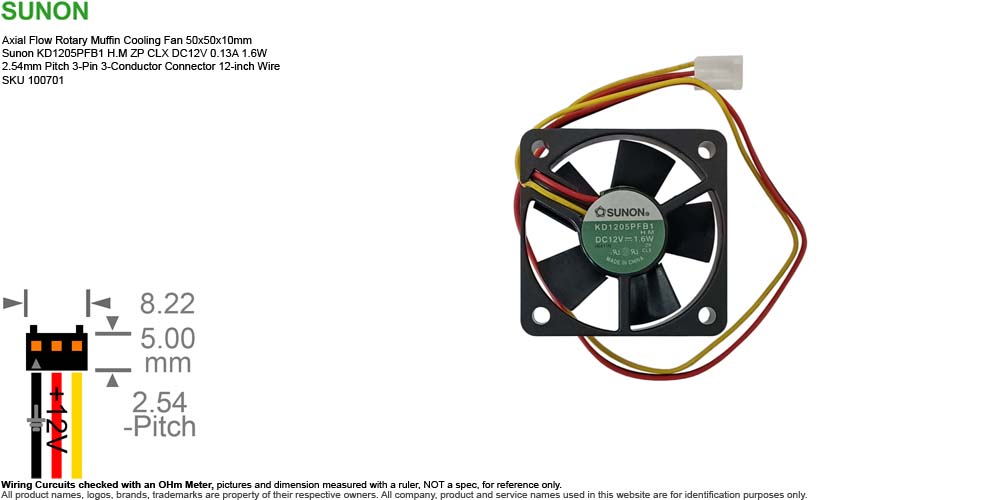

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x10mm Sunon KD1205PFB1 H.M ZP CLX H6411N DC12V 0.13A 1.6W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 100701
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD1205PFB1 H.M ZP CLX H6411N
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x10mm
  • Power Rating: DC12V 0.13A 1.6W
  • Bearing: Dual Ball Bearing
  • Speed: 5200~6000 RPM
  • Air Flow: 11.4~13.3 CFM
  • Noise Level: 30~34.7 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT / PA (Polyamide / Nylon) glass fiber reinforced environmental-grade plastic
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 12-inch
• Weight: 0.8 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1205PFB1 is a compact, 12V DC brushless axial cooling fan measuring 50mm x 50mm x 10mm. It is engineered for highly specialized, high-density localized thermal management in compact electrical systems.
  • KD1205PFB1 H.M ZP CLX H6411N Part Number Breakdown:
    • 'KD' Core DC Brushless Fan Series
    • '12' Rated input of 12 Volts DC
    • '05' 50mm frame length and width dimension
    • 'P' PBT Plastic frame and blade structural material
    • 'F' Frame Thickness 10mm
    • 'B' Precision dual-ball bearing assembly.
    • '1' Peak high-speed performance tier
    • 'M.H' Internal motor structure revision or plant location manufacturing code
    • 'ZP' Impedance Protected" motor design safety rating, ensuring the internal circuit will not melt or short out if the physical fan blades are completely jammed
    • 'CLX' : Factory certification batch code defining standard lead-wire termination metrics or insulation resistance
    • 'H6411N' A specific OEM/Customer-Tailored Variant Code. Sunon uses these trailing alphanumeric suffixes to denote non-standard, custom factory modifications ordered by a client. This typically signifies a custom lead-wire length, a specialized motherboard connector termination (such as a specific 3-pin pitch), or a customized target application branding label
  • Serial Numbers Available or Sold:
    • SN 0092029 New
    • SN 0092030 New
