Features:

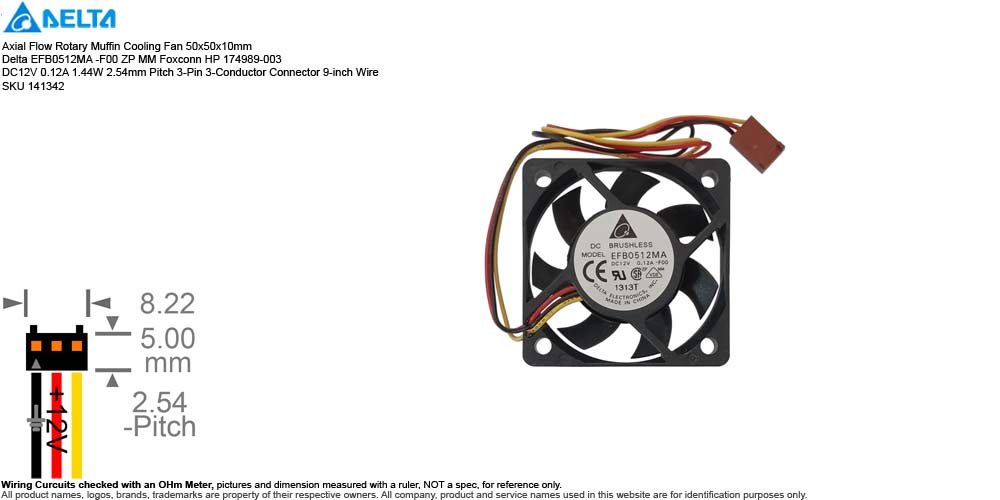

• Description: Axial Flow Rotary Muffin Cooling Fan 50x50x10mm Delta EFB0512MA -F00 ZP MM Foxconn HP 174989-003 DC12V 0.12A 1.44W 2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch Wire SKU 141342
• Manufacturer: Delta Electronics Inc.
• Brand Name or Distributor: Delta / Foxconn / HP / Compaq
• Model:
  • Delta EFB0512MA -F00 ZP MM
  • HP 174989-003
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 50x50x10mm
  • Power Rating: DC12V 0.12A 1.44W
  • Bearing: Dual Ball Bearing
  • Speed: 4500 RPM
  • Air Flow: 9.21 CFM
  • Noise Level: 25 dBA
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Wire Length: 9-inch
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
• Weight: 0.8 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For use with or pulled from: (for reference only)
  • The Delta EFB0512MA is an OEM part manufactured by Delta Electronics (frequently cross-branded or supplied via partner contractors like Foxconn) for Hewlett-Packard under the HP Spare Part Number 174989-003
  • EFB0512MA -F00 ZP MM 1313T Part Number Breakdown:
    • 'EFB' Delta product series designation (Slimline, high-efficiency axial DC brushless fan).
    • '05' Frame size code representing 50mm x 50mm
    • '12' Rated voltage operating at 12V DC (Operational range: 7.0V to 13.8V).
    • 'M' Medium speed classification (relative to low "L" or high "H" variants).
    • 'A' Generation / Mechanical design profile thickness classification (10mm depth)
    • '-F00' Outbound signal configuration designating 3-Wire Lead with Tachometer / Frequency Speed Sensor output.
    • 'ZP' Zone Protected / Impedance Protected with environmental classification, This is a safety code indicating that the fan motor is equipped with internal impedance protection (or electronic protection). It guarantees that if the fan impeller is completely blocked or locked, the circuit will restrict the current flow to prevent the motor from overheating or catching fire.
    • 'MM' Manufacturing Plant & Customer Specification Identification, The first letter indicates the exact Delta Electronics assembly facility or production line where the fan was built (e.g., China or Taiwan). The second letter (or combination) links the item to custom structural specifications required by the client—in this case, matching the proprietary wire harness, specific 3-pin connector layout, and bracket requirements requested by Foxconn/HP.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '1313T' The first two digits signify the year of manufacture (2013). The next two digits indicate the specific work week of that year (13th week, which falls in late March). The trailing letter represents the specific assembly line shift, production batch number, or sub-lot sequence used during that specific work week.
• Serial Number Available or Sold:
  • Batch 1313T / SN 0093586 Used
