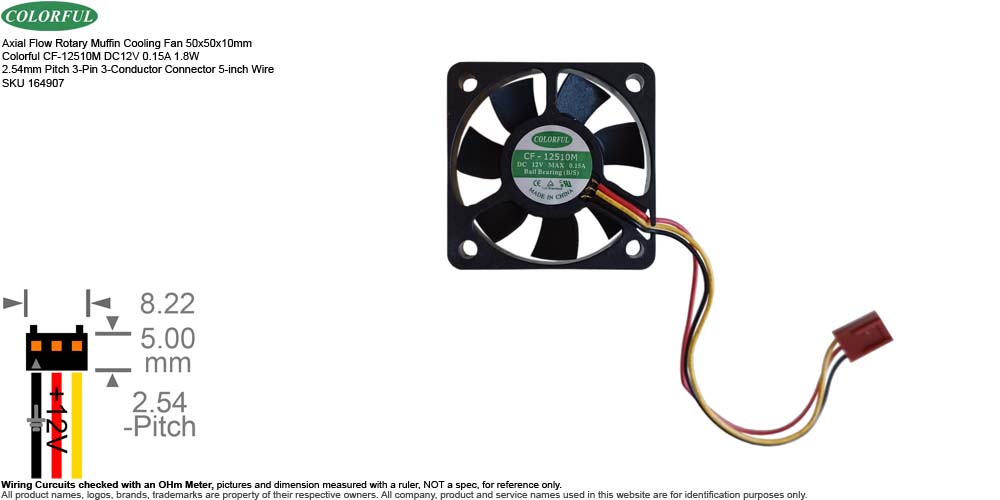

Axial Flow Rotary Muffin Cooling Fan 50x50x10mm
Colorful CF-12510M DC12V 0.15A 1.8W
2.54mm Pitch 3-Pin 3-Conductor Connector 5-inch Wire
SKU 164907
FN-5010-xxx

Features:

  • Description: Axial Flow Rotary Muffin Cooling Fan 50x50x10mm Colorful CF-12510M DC12V 0.15A 1.8W 2.54mm Pitch 3-Pin 3-Conductor Connector 5-inch Wire SKU 164907
  • Manufacturer: De Le Shin Yeh Enterprise Co., Ltd.
  • Brand and Distributor:
    • Colorful
  • Model: (Compatible, Equivalent, & Interchangeable)
    • Colorful CF-12510M
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 50x50x10mm
    • Power Rating: DC12V 0.15A 1.8W
    • Bearing: Dual Ball Bearing
    • Speed: 5000~6000 RPM
    • Air Flow: 12.0 CFM
    • Noise Level: 32.0 dB(A)
    • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
    • Overall Wire Length: 5-inch
  • Weight: 1.0 oz (estimated shipping weight 5 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, pulled from unused DVR, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, in good condition, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The Colorful CF-12510M is a compact, mid-to-high speed DC brushless axial fan manufactured by Colorful (De Le Shin Yeh) Enterprise Co., Ltd.. Measuring 50mm x 50mm x 10mm, it provides long-term, continuous cooling inside small enclosures due to its premium dual-ball bearing layout.
    • CF-12510M Part Number Breakdown:
      • 'CF' Colorful Fan Series tracking code
      • '12' 12 Volts DC Nominal Operating Range
      • '5' 50 mm Frame Width and Height
      • '10' 10 mm Frame Profile Depth (Slim configuration)
      • 'M' Medium-to-High speed configuration tier
    • Pulled from Pioneer POS Asterix Touch-X5
    • Serial Number Available or Sold:
      • SN 0112092 Used
