Features:

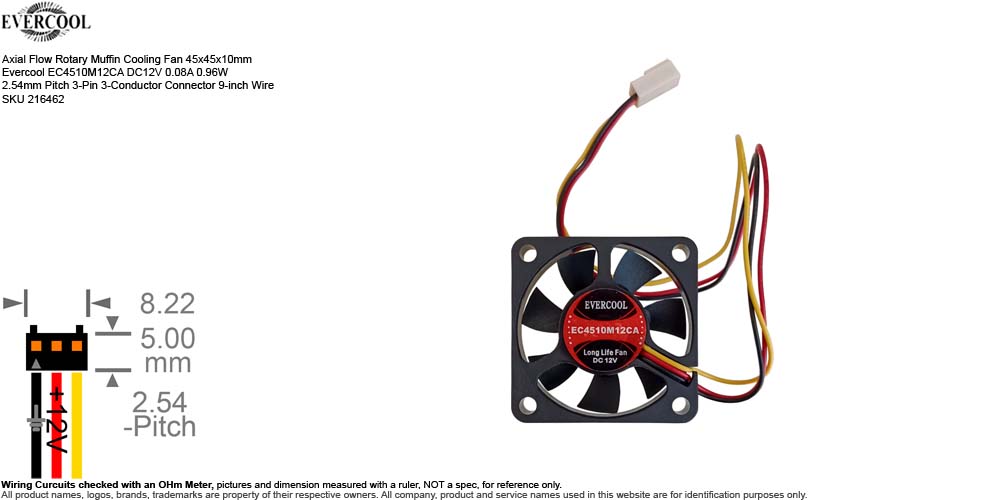

• Description: Axial Flow Rotary Muffin Cooling Fan 45x45x10mm Evercool EC4510M12CA DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch Wire SKU 216462
• Manufacturer: EVERCOOL Thermal Co., Ltd.
• Brand and Distributor:
  • Evercool
• Model: (Compatible, Equivalent, & Interchangeable)
  • Evercool EC4510M12CA
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 45x45x10mm
  • Power Rating: DC12V 0.08A 0.96W
  • Bearing: Dual Ball Bearing
  • Speed: 5000 RPM
  • Air Flow: 7.63 to 7.79 CFM
  • Noise Level: 24 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 9-inch
• Weight: 0.6 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The  Evercool EC4510M12CA is a specialized, low-profile DC brushless axial cooling fan manufactured by Evercool Thermal Co., Ltd.. Measuring 45mm x 45mm x 10mm, this uncommonly sized footprint is engineered for tight spaces where a standard 40mm fan doesn't offer enough airflow, but a 50mm fan is physically too large.
  • EC4510M12CA Part Number Breakdown:
    • 'EC' Evercool Brushless DC Cooling Fan prefix designator
    • '45' 45 mm Frame Width and Height
    • '10' 10 mm Frame Profile Depth (Slimline chassis)
    • 'M' Medium speed configuration tier
    • '12' 12 Volts DC Nominal Operating Range
    • 'C' Dual Ball Bearing mechanism marker
    • 'A' 3-Wire layout featuring a Tachometer / Speed Sensor Output
  • Serial Number Available or Sold:
    • SN 0112083 New
