Datasheet: Sunon PMD1204PPB1

Features:

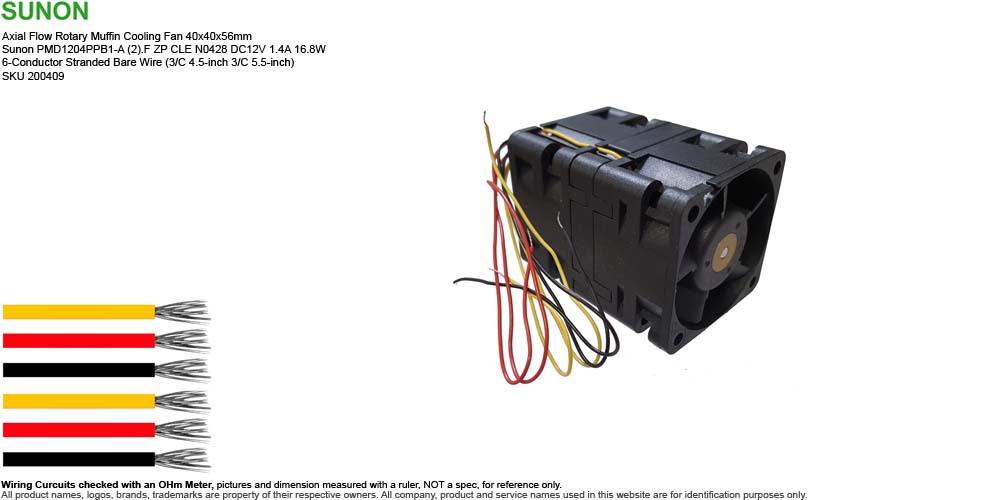

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x56mm Sunon PMD1204PPB1-A (2).F ZP CLE N0428 DC12V 1.4A 16.8W 6-Conductor Stranded Bare Wire (3/C 4.5-inch 3/C 5.5-inch) SKU 200409
• Manufacturer:
  • Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor:
  • Sunon
• Model:
  • Sunon PMD1204PPB1-A (2).F ZP CLE N0428
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x56mm
  • Power Rating: DC12V 1.4A 16.8W
  • Bearing: Dual Ball Bearing
  • Speed: 14,500 RPM (Front Fan) / 9,500 RPM (Rear Fan)
  • Air Flow: 26.5 CFM
  • Noise Level: 59 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 6-Conductor Stranded Bare Wire
  • Wire Length:  3/C 4.5-inch + 3/C 5.5-inch
• Weight: 3.1 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - New Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The Sunon PMD1204PPB1-A is a specialized, industrial-grade, ultra-high-performance dual counter-rotating DC axial cooling fan. Designed specifically for high-density configurations like enterprise server chassis, it packs massive air-moving capability into a tiny footprint by stacking two separate motorized impellers into a single frame, widely used as a hot-swappable cooling module in server configurations where space is extremely tight but massive airflow is required. Specific compatible models include:
    • Dell PowerEdge 1950 Servers
    • Dell PowerEdge 1435 Servers
    • Supermicro 1U and 2U Servers (often cross-referenced as part number FAN-0086)
  • PMD1204PPB1-A (2).F ZP CLE N0428 Part Number Breakdown:
    • 'P' Fan Series (Power Motor Series, built for extreme performance)
    • 'M' MagLev Motor System Architecture (incorporating magnetic levitation enhancements)
    • 'D' DC Voltage motor input
    • '12' 12 Volts Nominal Input Voltage
    • '04' 40mm Frame Width/Height
    • 'P' 56mm Frame Thickness / Dual Fan Assembly configuration
    • 'P' Ultra-High/Extreme Speed performance rating tier
    • 'B1' Dual Ball Bearing system / High-Speed tier classification
    • '-A' Generation code / Frame styling reference
    • '(2)' Denotes a Dual Motor / Counter-Rotating paired model unit
    • '.F' Function code representing Tachometer / Frequency Output (Speed Sensor) signal pinouts
    • 'ZP' Impedance Protected / Electronic locked-rotor protection (prevents motor burnout if blades get jammed)
    • 'CLE' OEM Customer Custom Code specifying unique lead-wire lengths or 6-wire bare termination arrangements
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'N0428' Factory production batch control/lot trace number
