Features:

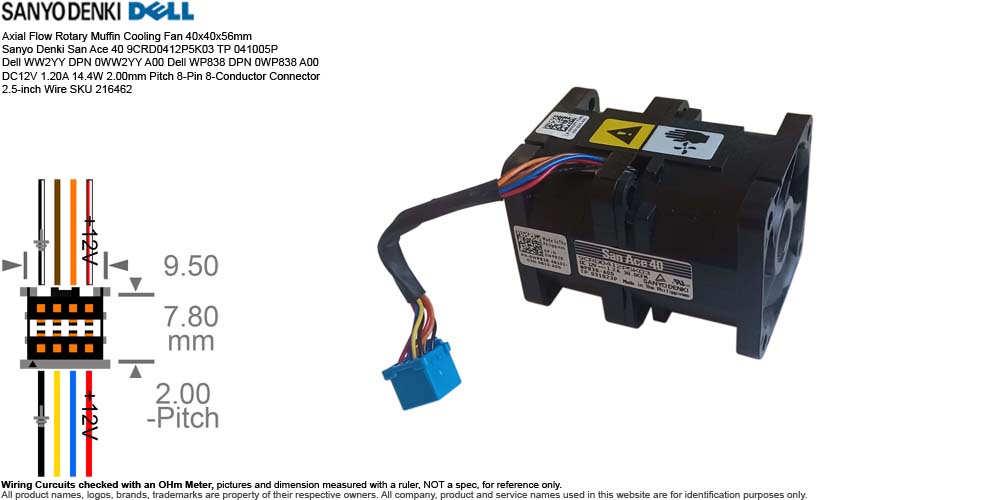

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x56mm Sanyo Denki San Ace 40 9CRD0412P5K03 TP 041005P Dell WW2YY DPN 0WW2YY A00 Dell WP838 DPN 0WP838 A00 DC12V 1.20A 14.4W 2.00mm Pitch 8-Pin 8-Conductor Connector 2.5-inch Wire SKU 216462
• Manufacturer:
  • Dell splits orders among vendors, while the DPN (Dell Part Number) remain identical across these parts
  • Sanyo Denki Co., Ltd.
• Brand or Distributor:
  • Sanyo Denki San Ace 40
  • Dell
• Model:
  • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
  • Sanyo Denki San Ace 40 9CRD0412P5K03
  • Dell WW2YY DPN 0WW2YY A00
  • Dell WP838 DPN 0WP838 A00
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x56mm
  • Power Rating: DC12V 1.20A 14.4W
  • Bearing: Dual Ball Bearing
  • Speed: 19,000 RPM
  • Air Flow: 30.72 CFM
  • Noise Level: 64~66 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: Reinforced Engineering Plastics
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.00mm Pitch 8-Pin 8-Conductor (Dual 4-Pin PWM) Connector
  • Wire Length: 2.5-inch
• Weight: 3.1 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The Sanyo Denki San Ace 40 9CRD0412P5K03 is an industrial-grade, extreme-density cooling unit engineered specifically to withstand the extreme thermal requirements of high-performance network hardware
  • 9CRD0412P5K03 TP 041005P Dell WW2YY DPN 0WW2YY A00 Dell WP838 DPN 0WP838 A00 Part Number Breakdown:
    • '9CR' Identifies the core San Ace Counter-Rotating Series product line
    • 'D' Designates the specific structural platform generation variant
    • '04' Specifies the frame size dimension (40mm x 40mm footprint)
    • '12' States the intended operational input voltage (12V DC)
    • 'P' Signifies integrated PWM speed control functionality
    • '5' Denotes the specific dual-frame thickness class (56mm deep chassis enclosure)
    • 'K' Indicates the factory Speed Grade. "K" represents the hyper-performance, extra-high RPM tier
    • '03' The final manufacturing code indicating standard pulse/tachometer sensor configurations tailored to OEM buyers like Dell
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'TP 041005P' The string TP-041005P printed on that specific fan assembly is an internal engineering, manufacturing, or regulatory compliance tracking code used by Sanyo Denki. It is not a functional part number, performance specification, or user-configurable variable
    • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
      • '0WW2YY vs 0WP838' There is no functional or physical difference between Dell part numbers 0WW2YY and 0WP838; they refer to the exact same component subsystem. They are completely interchangeable, cross-compatible drop-in replacements for one another inside a Dell PowerEdge R610 1U rack server
  • Pulled from Dell PowerEdge R610 1U Rackmount Server
  • Serial Numbers Available or Sold:
    • CN-0WW2YY-47985-05R-0682-A00 Used
    • CN-0WW2YY-47985-05R-0733-A00 Used
    • CN-0WW2YY-47985-05R-0749-A00 Used
    • CN-0WW2YY-47985-05R-0750-A00 Used
    • CN-0WW2YY-47985-05R-0760-A00 Used
    • CN-0WW2YY-72481-05H-03IS-A00 / CN-0WP838-48101-03N-0810-A00 Used
