Features:

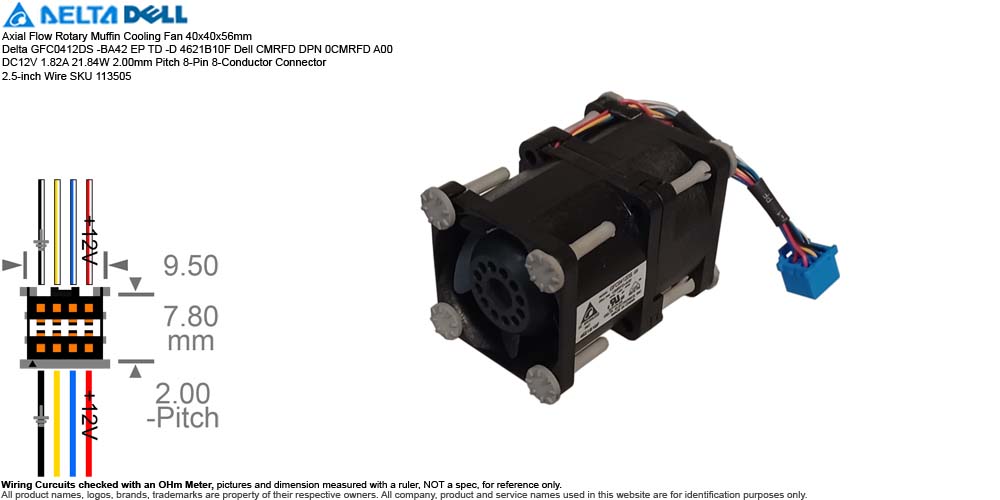

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x56mm Delta GFC0412DS -BA42 EP TD -D 4621B10F Dell CMRFD DPN 0CMRFD A00 DC12V 1.82A 21.84W 2.00mm Pitch 8-Pin 8-Conductor Connector 2.5-inch Wire SKU 113505
• Manufacturer:
  • Dell splits orders among vendors, while the DPN (Dell Part Number) remain identical across these parts
  • Delta Electronics, Inc.
• Brand or Distributor:
  • Delta
  • Dell
• Model:
  • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
  • Delta GFC0412DS -BA42 EP TD -D
  • Dell CMRFD A00
  • DPN 0CMRFD A00
  • Dell HR6C0 A00
  • DPN 0HR6C0 A00
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x56mm
  • Power Rating: DC12V 1.82A 21.84W
  • Bearing: Dual Ball Bearing
  • Speed: 20,500 RPM
  • Air Flow: 37.6 CFM
  • Noise Level: 69 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.00mm Pitch 8-Pin 8-Conductor (Dual 4-Pin PWM) Connector
  • Wire Length: 2.5-inch
• Weight: 3.1 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The Delta GFC0412DS is a,
    • Counter-Rotating Dual-Rotor Design: Pairs two independent motors back-to-back inside a single 40x56mm frame. One rotor draws air in while the other forces it out in the opposite rotational direction, generating massive static pressure (4.11 in-H2O).
    • Pulse Width Modulation (PWM): Built-in 4-wire or 8-wire dynamic speed control allowing the server motherboard to regulate RPM based on heat levels.
    • Integrated Safety Sensors: Features a Tachometer (Speed Sensor) for continuous system monitoring and Locked Rotor Protection to cut power if physical debris jams the blades.
  • GFC0412DS -BA42 EP TD -D 4621B10F Dell CMRFD DPN 0CMRFD A00 Part Number Breakdown:
    • 'GF' Delta Electronics proprietary high-performance dual-rotor, counter-rotating fan series code
    • 'C' Structural frame geometry code denoting a 40mm x 40mm profile
    • '04' Explains the physical depth/thickness of the dual-fan assembly housing (56mm)
    • '12' Indicates the standard requirement for a 12V DC operating input voltage
    • 'D' Explains the speed class classification (Super High-Speed Output)
    • 'S' Signifies a standard data transmission package containing a Tachometer/Speed output and standard Pulse Width Modulation capability
    • '-BA42' Dell custom identification modifier. This dictates the custom internal firmware calibrations, exact wiring harness length, and specific hot-swap pinned connector style required by Dell's server motherboards
    • 'EP/TD' Specific Delta internal manufacturing plant location designations, internal tracking lines, and regional environmental code compliance symbols
    • '-D' Pinouts structural interface variant used on specific hardware assemblies
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '4621B10F' Unique factory production lot code, serial identifier, and manufacturing date matrix tracking stamp
    • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
      • 'Dell CMRFD' The unique, base 5-character alphanumeric identification string assigned to this physical product part inside the global Dell asset infrastructure
      • 'DPN 0CMRFD' Officially means Dell Part Number. The character 0 is prefixed to complete requirements for 6-character inventory tracking barcodes
      • 'A00' Hardware revision state code. A00 tells the engineer it is the initial, first-generation manufacturing standard cleared for global deployment
  • Pulled from Dell PowerEdge R320 1U Rackmount Server
  • Serial Number Available or Sold:
    • CN-0HR6C0-42945-47T-032A-A00 Used
    • CN-0HR6C0-42945-47T-032O-A00 Used
    • CN-0HR6C0-42945-47T-032T-A00 Used
    • CN-0HR6C0-42945-47T-0337-A00 Used
    • CN-0HR6C0-42945-477-025O-A00 Used
