Datasheet: Sunon PMD1204PPB1

Features:

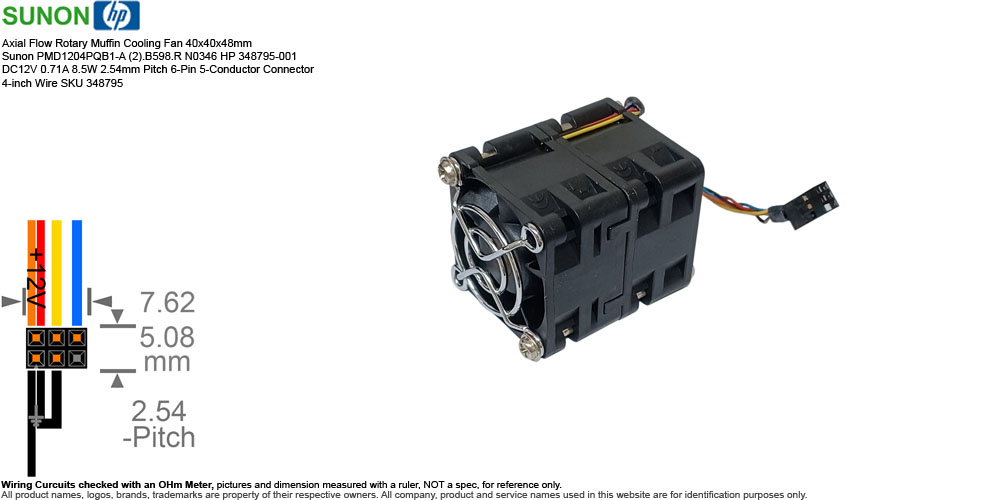

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x48mm Sunon PMD1204PQB1-A (2).B598.R N0346 HP 348795-001 DC12V 0.71A 8.5W 2.54mm Pitch 6-Pin 5-Conductor Connector 4-inch Wire SKU 348795
• Manufacturer:
  • Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor:
  • Sunon
• Model:
  • Sunon PMD1204PQB1-A (2).B598.R N0346
  • HP 348795-001
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x48mm
  • Power Rating: DC12V 0.71A 8.5W
  • Bearing: Dual Ball Bearing
  • Speed: 15,000 RPM +/- 15%
  • Air Flow: 24 CFM
  • Noise Level: 55.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 6-Pin 5-Conductor Connector
  • Wire Length: 4-inch
• Weight: 3.5 oz (Estimated Shipping Weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - New Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The Sunon PMD1204PQB1-A is a high-performance, industrial-grade DC brushless axial cooling fan. This specific variant—bearing the full label PMD1204PQB1-A (2).B598.R N0346—is an OEM part custom-configured for HP (HP Part Number: 348795-001), primarily pulled from enterprise server equipment like the HP ProLiant DL140 G1 and DL144 systems
  • PMD1204PQB1-A (2).B598.R N0346 Part Number Breakdown:
    • 'P' Product Series: Power Motor design (engineered for maximum static pressure)
    • 'M' Motor Type: DC Brushless motor
    • 'D' Motor Phase/Design: 4-Pole Motor construction
    • '12' Rated Voltage: 12 Volts DC
    • '04' Frame Size: 40mm length/width
    • 'P' Frame Material: Thermoplastic PBT plastic frame
    • 'Q' Frame Thickness: 48mm depth
    • 'B' Bearing System: Dual Ball Bearing architecture
    • '1' Speed Rating: High-velocity performance tier
    • '-A' Generation Identifier: Sequence code tracking internal factory revisions
    • '(2)' Hub/Blade Configuration: Employs a larger central hub paired with shorter blades optimized for high-pressure delivery
    • '.B598.R' OEM/Signal Suffix: Internal Sunon project code designating custom HP internal specs, featuring a Rotation Detector (R) tachometer circuit wire
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'N0346' Lot/Batch Control: Manufacturing plant tracking trace identifier
  • Pulled from HP ProLiant DL144 M0CNMF622R Server Computer.
  • Serial Number Available or Sold:
    • Batch N0346 / 0100074 Used
    • Batch N0346 / 0100075 Used
    • Batch N0346 / 0100076 Used
    • Batch N0346 / 0100077 Used
    • Batch N0346 / 0100078 Used
