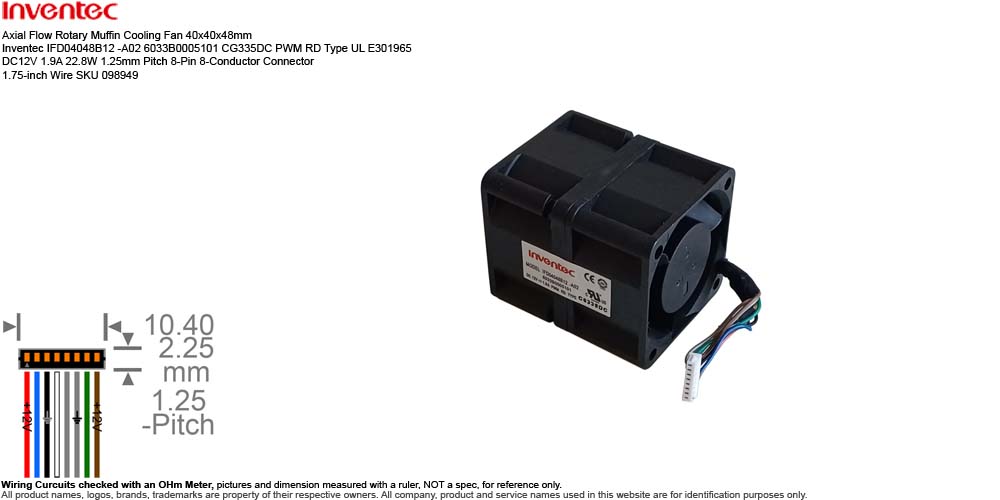

Axial
Flow Rotary Muffin Cooling Fan 40x40x48mm
Inventec IFD04048B12 -A02 6033B0005101 CG335DC PWM RD Type UL E301965
DC12V 1.9A 22.8W 1.25mm Pitch 8-Pin 8-Conductor Connector 1.75-inch Wire
SKU 098949
FN-4048-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 40x40x48mm Inventec IFD04048B12 -A02
6033B0005101 CG335DC PWM RD Type UL E301965 DC12V 1.9A 22.8W 1.25mm
Pitch 8-Pin 8-Conductor Connector 1.75-inch Wire SKU 098949
- Manufacturer:
- Brand or Distributor:
- Model:
(and/or
Compatible, Equivalent, Interchangeable)
- Inventec IFD04048B12
-A02 6033B0005101 CG335DC PWM RD Type
- Brief Spec.:
- Design: DC
Brushless Fan
- Fan Size:
40x40x48mm
- Power
Rating:
DC12V 1.9A
22.8W
- Bearing:
Dual Ball Bearing
- Speed:
14,000~16,000 RPM
-
Air Flow: 25~30 CFM
- Noise
Level: 60~65 dB(A)
- Material:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
- Connection:
1.25mm Pitch
8-Pin 8-Conductor Connector
- Wire
Length:
1.75-inch
- Weight: 2.7 oz
(Estimated Shipping Weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged Open Box, unused excess inventory, may have signs of
cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
New Open Box, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U - Used,
with
signs of cosmetic wear.
-
Package: Non-Retail
Packaging, in
Unprinted Reused Box
or Plastic Bag.
-
For use with or pulled from: (for reference
only)
- The
Inventec IFD04048B12 was
manufactured exclusively as an OEM component for enterprise
enterprise blades (such as the
HP ProLiant BL25p G2 and BL45p G2).
- IFD04048B12 -A02
6033B0005101 CG335DC PWM RD Type Part
Number Breakdown:
- 'IFD' Inventec
Fan Division (The OEM manufacturer's proprietary identifier
code)
- '04048'
Denotes
physical dimensions.
040
represents 40mm width,
040
represents 40mm height, and
48
represents the 48mm depth
-
'B'
Dual Ball Bearing
system
-
'12' Rated
voltage (12
Volts DC)
-
'-A02' Hardware
revision index (Revision 02) indicating a specific step in
the internal PCB layout or wiring harness configuration
-
'6033B000510' Internal
engineering part/bom number utilized during server-system
tracking.
-
'CG335DC' The
regulatory type matrix tracking family code used for safety
certifications (UL/CE).
- 'PWM'
(Pulse Width Modulation):
Enables the server's motherboard to dynamically dynamically
scale the fan's speed from 0% to 100% duty cycle depending
on thermal load.
- 'Type RD'
(Rotation Detector):
This is a specialized safety signal (sometimes called a
lock-rotor alarm). Unlike a traditional standard Tachometer
(which outputs a continuous speed pulse), an
RD signal remains Low during normal rotation and flips to
High if the fan stalls or encounters mechanical failure,
prompting an immediate server safety shutdown.
- Pulled from
HP Proliant BL25P G2 Blade Server.
- Serial Number
Available or Sold:
- SN
0098946 Used
- SN
0098947 Used
- SN
0098948 Used
- SN
0098949 Used
- SN
0098950 Used
|
