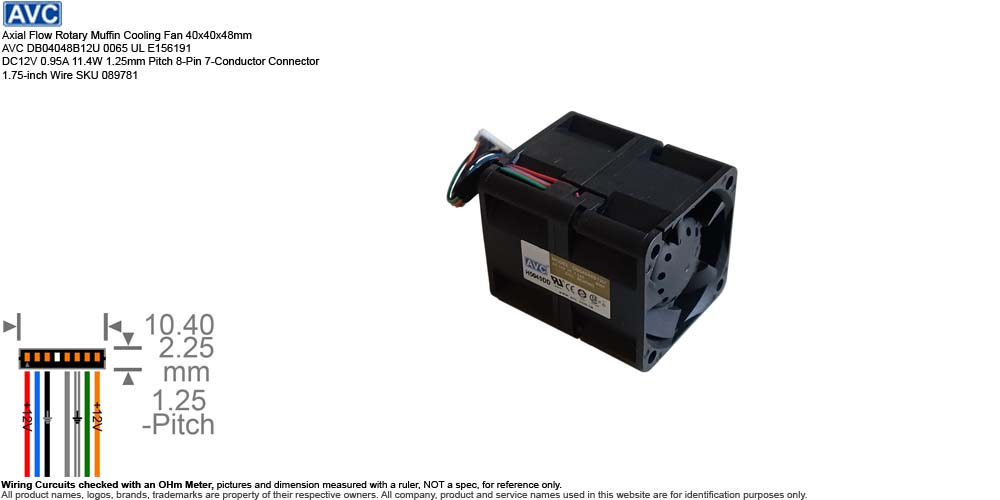

Axial
Flow Rotary Muffin Cooling Fan 40x40x48mm
AVC DB04048B12U 0065 UL E156191 DC12V 0.95A 11.4W 1.25mm Pitch 8-Pin
7-Conductor Connector 1.75-inch Wire SKU 089781
FN-4048-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 40x40x48mm AVC DB04048B12U 0065 UL
E156191 DC12V 0.95A 11.4W 1.25mm Pitch 8-Pin 7-Conductor Connector
1.75-inch Wire SKU 089781
- Manufacturer:
- Asia Vital
Components Co., Ltd.
- Brand or Distributor:
- Model:
(and/or
Compatible, Equivalent, Interchangeable)
- AVC DB04048B12U 0065
H5045DD
- AVC DB04048B12U 0065
H5051DD
- AVC DB04048B12U 0065
H5054DD
- Brief Spec.:
- Design: DC
Brushless Fan
- Fan Size:
40x40x48mm
- Power
Rating:
DC12V 0.95A
11.4W
- Bearing:
Dual Ball Bearing
- Speed:
16,000 RPM
-
Air Flow: 25.47 CFM
- Noise
Level: 59 dB(A)
- Material:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
- Connection:
1.25mm Pitch
8-Pin 7-Conductor Connector
- Wire
Length:
1.75-inch
- Weight: 2.7 oz
(Estimated Shipping Weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged Open Box, unused excess inventory, may have signs of
cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
New Open Box, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U - Used,
with
signs of cosmetic wear.
-
Package: Non-Retail
Packaging, in
Unprinted Reused Box
or Plastic Bag.
-
For use with or pulled from: (for reference
only)
- The
AVC DB04048B12U 0065 is
a
high-velocity, industrial-grade dual-motor axial cooling fan
designed primarily for compact, high-density server
configurations.
- DB04048B12U 0065
H5045DD Part
Number Breakdown:
- 'DB' Dual
Rotor / Dual Ball Bearing design
- '04048'
40mm width × 40mm height × 48mm depth
housing
-
'B'
Premium Precision
Dual Ball Bearing system
-
'12' DC
12V nominal operating threshold
-
'U' Ultra-High
Speed ("Violent") performance grade, rated at
1.14A
amperage pull
-
'0065' Engineering
assembly code for an integrated
8-pin, 7-wire terminal plug
-
'B' Bearing
System:
Ball Bearing (Dual system).
- '2'
Speed Tier Number:
Second tier performance rating (Medium-high within the J
sub-bracket).
- '-A'
Generation:
Standard revision or Auto-restart protection feature.
- '(2)'
Design Phase:
Represents a second-generation blade profile or internal
structural update.
- 'B1134'
Customer Code / Electronic Design:
Sunon’s internal custom tracking matrix. This signifies a
custom-built wiring wire-harness assembly layout engineered
specifically to match HP server chassis midplanes.
- 'R'
Function Code:
Typically denotes "Reverse" rotation of the secondary
rotor/impeller or specific lock-rotor sensor outputs
-
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
-
'H5045DD'
Internal factory production line tracking and raw
timestamp data
- Pulled from HP
Proliant BL25P 1U Rackmount Server
- Serial Number
Available or Sold:
- Batch H5045DD
- SN
0089785 Used
- SN
0089786 Used
- SN
0089787 Used
- SN
0089788 Used
- Batch H5051DD
- SN
0089781 Used
- SN
0089782 Used
- SN
0089783 Used
- SN
0089784 Used
- Batch H5054DD
- SN
0089791 Used
- SN
0089792 Used
- SN
0089793 Used
- SN
0089794 Used
|
