Features:

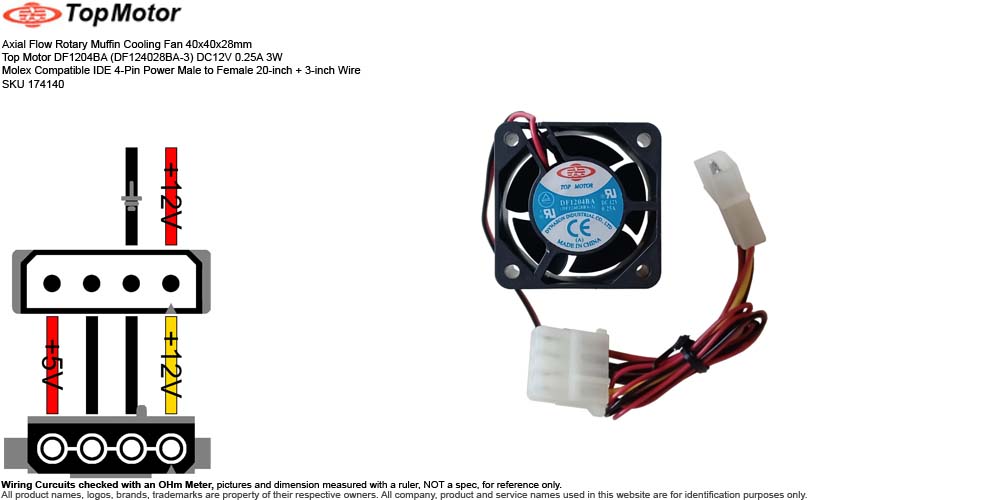

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Top Motor DF1204BA (DF124028BA-3) DC12V 0.25A 3W Molex Compatible IDE 4-Pin Power Male to Female 20-inch + 3-inch Wire SKU 174140
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • DF1204BA
  • DF124028BA-3
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Dual Ball Bearing
  • Speed: 9200 RPM +/- 10%
  • Air Flow: 39.8 CFM
  • Noise Level: 39.8 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 24-inch
    • 20-inch: from Fan to 4-pin Male Connector
    • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF1204BA (DF124028BA-3) is a compact, high-performance DC cooling fan manufactured by Dynaeon Industrial Co.. It is engineered to provide precise thermal management for tightly enclosed electronic environments.
  • DF1204BA DF124028BA-3 C (A) Part Number Breakdown:
    • 'DF' DC Axial Fan product line
    • '12' 12V DC operating voltage
    • '40' 40mm frame width/height
    • '28' 28mm frame thickness
    • 'B' Dual Ball Bearing configuration
    • 'A' Low-to-medium speed tier for this specific sub-series
    • '3' 3-pin motherboard connector interface
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'C (A)' Internal factory modification revision and manufacturing plant designation
  • Serial Number Available or Sold:
    • SN 0078736 New
    • SN 0078737 New
    • SN 0078738 New
    • SN 0078739 New
    • SN 0078700 New
    • SN 0078741 New
    • SN 0078742 New
    • SN 0078743 New
    • SN 0078744 New
    • SN 0078745 New
    • SN 0078746 New
    • SN 0078747 New
    • SN 0078748 New
    • SN 0078749 New
    • SN 0078750 New
    • SN 0078751 New
    • SN 0078752 New
    • SN 0078753 New
    • SN 0078754 New
    • SN 0078755 New
