Features:

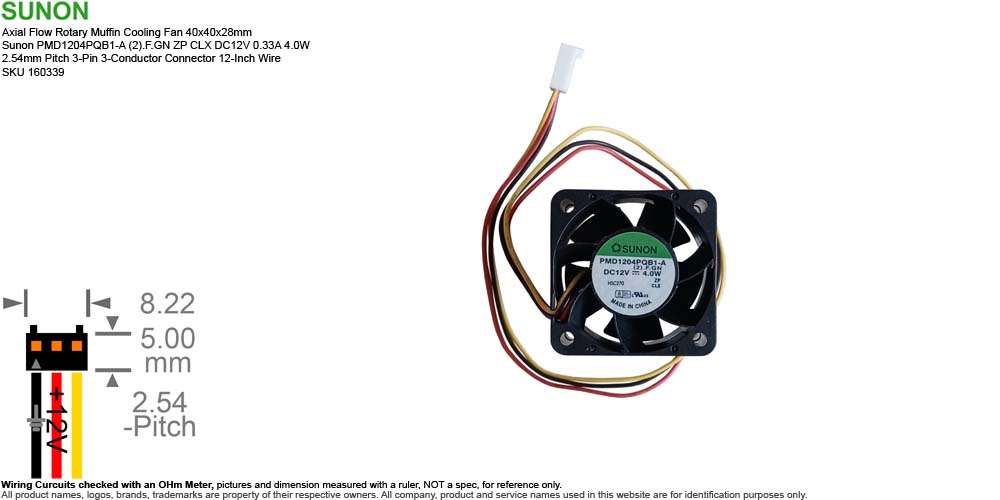

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Sunon PMD1204PQB1-A (2).F.GN ZP CLX DC12V 0.33A 4.0W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-Inch Wire SKU 160339
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon PMD1204PQB1-A (2).F.GN ZP CLX
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.33A 4.0W
  • Bearing: Dual Ball Bearing
  • Speed: 15,000 RPM +/-15%
  • Air Flow: 24.0 CFM
  • Noise Level: 55.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 12-inch
• Weight: 1.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon PMD1204PQB1-A is a high-performance, industrial-grade 40mm DC brushless axial fan. It is designed primarily for high-density cooling environments requiring powerful airflow and high static pressure, such as enterprise servers, telecommunications hardware, and power supply units
  • PMD1204PQB1-A (2).F.GN ZP CLX H5C270 Part Number Breakdown:
    • 'PMD' Series Name: High-output power motor design
    • '12' Rated Voltage: 12V DC operating profile (accepts 6V to 13.8V ranges)
    • '04' Frame Size Width: 40mm frame envelope
    • 'PQ' Frame Thickness: 28mm deep housing variant
    • 'B' Motor Pole Architecture: 4-Pole Brushless DC design
    • '1' Performance Tier: High Speed / Max Performance rating within its size bracket
    • '-A' Generation Identifier: Sequence or architectural revision marker
    • '(2)' Customer Specification Revision: Secondary batch production code
    • '.F' Signal Type: Frequency Generator (Tachometer/Speed Output) configuration
    • '.GN' Compliance: Green Product designation (RoHS Directive compliant)
    • 'ZP' Impedance Protection (Standard Definition): In Sunon's industrial catalog, "ZP" often notes that the motor is electronically protected against burning out if a component jams the blades
    • 'CLX' represents an internal design profile for the fan's electronic control circuit. CLX variant fans are programmed to prioritize static pressure
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'H5C270' This is an absolute batch routing code that dictates the final layout of the physical plug
        • 'H5' References the housing type of the plastic connector termination (e.g., a specific 3-pin or 4-pin Molex, Hirose, or JST header footprint configured for immediate, tool-less integration into an enterprise server motherboard array)
        • 'C270' Notes the precise length of the wiring harness bundle or the structural placement of insulation. In Sunon factory custom-routing codes, this designates a lead wire length of exactly 270 millimeters from the point where the wires exit the fan housing to the edge of the plastic connector terminal
  • Pulled from unused computer cases.
  • Serial Number Available or Sold:
    • Batch H5C270, SN 0092188 New
    • Batch H5C270, SN 0092189 New
