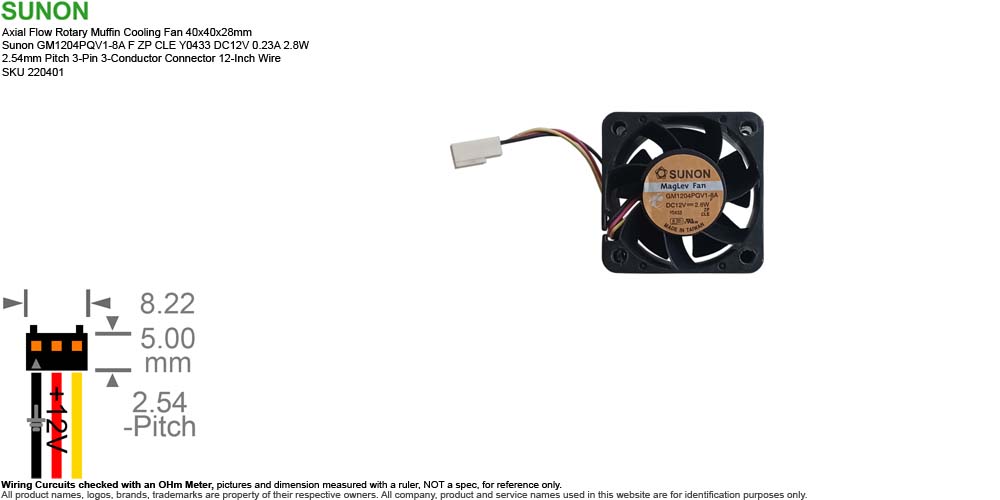

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Sunon GM1204PQV1-8A F ZP CLE Y0433 DC12V 0.23A 2.8W 2.54mm Pitch 3-Pin 3-Conductor Connector 2-Inch Wire SKU 220401
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon GM1204PQV1-8A F ZP CLE Y0433
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.23A 2.8W
  • Bearing: Vapo-Bearing with MagLev technology
  • Speed: 9,200 RPM
  • Air Flow: 15.3~17 CFM
  • Noise Level: 35~39 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: High-strength PBT plastic molded into an optimized 5-blade configuration
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 2-inch
• Weight: 1.4 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon GM1204PQV1-8A is a high-performance, 40mm x 40mm x 28mm (4028) brushless DC axial cooling fan. It utilizes Sunon's patented MagLev (Magnetic Levitation) system with a specialized Vapo bearing. This design eliminates mechanical friction, significantly reducing acoustic noise while maximizing operational longevity
  • GM1204PQV1-8A F ZP CLE Y0433 Part Number Breakdown:
    • 'GM' Fan Series Green Motor (GM) Series
    • '12' Operating Voltage 12 Volts DC
    • '04' Frame Size (Width/Height) 40 mm
    • 'PQ' Frame Thickness 28 mm (represented by specific factory depth tier codes)
    • 'V' Motor Structure Vapo Bearing / MagLev configuration
    • '1' Performance Speed Code High Speed (Tier 1 rating)
    • '-8A' Internal Design Code Specific generation geometry and component layout
    • '.F' Electronic Function Features an integrated Sensor/Frequency Signal output (Tachometer wire)
    • 'ZP' Circuit Protection Built-in Impedance/Auto-Restart Protection
    • 'CLE' Customer/Connector Spec Indicates factory wire harnessing, custom wiring lengths, and terminal pitch pins
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'Y0433' Factory Revision StringProprietary OEM build tracking number for specific platform compliance
  • Pulled from Microsoft Internet Security & Acceleration Server NS6330 Network Engines
  • Serial Number Available or Sold:
    • 0089745 Used
