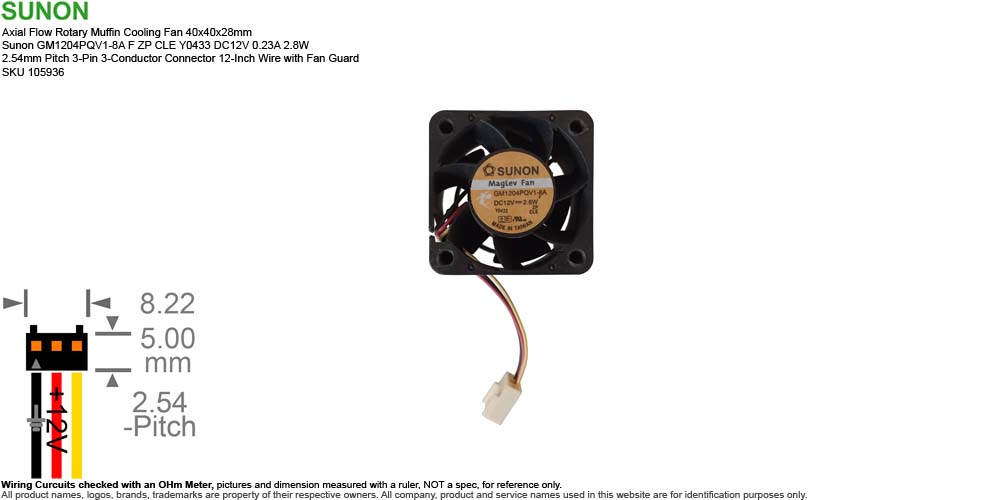

Axial
Flow Rotary Muffin Cooling Fan 40x40x28mm
Sunon GM1204PQV1-8A F ZP CLE Y0433
DC12V 0.23A 2.8W 2.54mm Pitch 3-Pin 3-Conductor Connector 2-Inch Wire
with Fan Guard SKU 105936
FN-4028-xxx
Features Applications RPM
CFM dBA Bearing System Frame Impeller Material Part Number Breakdown
- Description: Axial
Flow Rotary Muffin Cooling Fan 40x40x28mm Sunon GM1204PQV1-8A F ZP
CLE Y0433 DC12V 0.23A 2.8W 2.54mm Pitch 3-Pin 3-Conductor Connector
2-Inch Wire with Fan Guard SKU 105936
- Manufacturer:
Sunonwealth Electric Machine Industry Co., Ltd.
- Brand: or
Distributor: Sunon
- Model:
(and/or Compatible,
Equivalent, Interchangeable)
- Sunon
GM1204PQV1-8A F ZP CLE Y0433
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
40x40x28mm
- Power Rating:
DC12V 0.23A
2.8W
- Bearing:
Vapo-Bearing
with MagLev technology
- Speed:
9,200 RPM
- Air Flow:
15.3~17 CFM
- Noise Level:
35~39 dB(A)
- Material: PBT
Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
-
Impeller Blades:
High-strength
PBT plastic
molded into an optimized 5-blade configuration
- Connection:
2.54mm Pitch
3-Pin 3-Conductor Connector
- Overall Wire Length: 2-inch
- Protective
Finger Guard Included
- Weight: 1.5 oz
(estimated shipping weight 6 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The Sunon
GM1204PQV1-8A
is a high-performance, 40mm x 40mm
x 28mm (4028) brushless DC axial cooling fan. It utilizes
Sunon's patented
MagLev (Magnetic Levitation) system
with a specialized
Vapo bearing.
This design eliminates mechanical friction, significantly
reducing acoustic noise while maximizing operational longevity
- GM1204PQV1-8A F ZP
CLE Y0433 Part Number Breakdown:
-
'GM'
Fan Series
Green Motor (GM) Series
-
'12'
Operating Voltage
12 Volts DC
-
'04'
Frame Size (Width/Height)
40 mm
-
'PQ'
Frame
Thickness
28 mm
(represented by specific factory depth tier codes)
- 'V' Motor
Structure
Vapo Bearing / MagLev
configuration
- '1'
Performance Speed Code
High Speed
(Tier 1 rating)
- '-8A' Internal
Design Code Specific generation geometry
and component layout
- '.F'
Electronic Function Features an
integrated
Sensor/Frequency Signal output
(Tachometer wire)
- 'ZP' Circuit Protection Built-in
Impedance/Auto-Restart Protection
- 'CLE' Customer/Connector Spec
Indicates factory wire harnessing, custom wiring lengths,
and terminal pitch pins
-
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- 'Y0433'
Factory Revision StringProprietary OEM
build tracking number for specific platform compliance
- Pulled from Microsoft
Internet Security & Acceleration Server NS6330 Network Engines
- Serial Number
Available or Sold:
|
