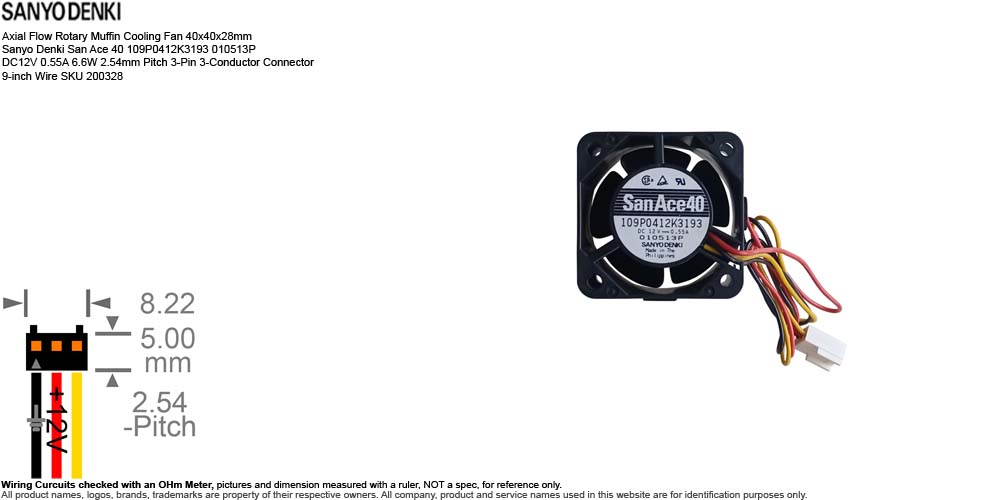

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Sanyo Denki San Ace 40 109P0412K3193 010513P DC12V 0.55A 6.6W 2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch Wire SKU 200328
• Manufacturer: Sanyo Denki  Co., Ltd.
• Brand: or Distributor:
  • Sanyo Denki
  • iOmega
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sanyo Denki San Ace 40 109P0412K3193 010513P
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.55A 6.6W
  • Bearing: Dual Ball Bearing
  • Speed: 15,500 RPM
  • Air Flow: 20.8 CFM
  • Noise Level: 50 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: Plastics (UL 94V-0). This is a flame-retardant, fiber-reinforced plastic housing designed with standard mounting ribs or structural grooves
    • Impeller Blades: Plastics (UL 94V-0). High-strength engineering plastic dynamically balanced to prevent vibration at 15,500 RPM
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 9-inch
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sanyo Denki San Ace 40 109P0412K3193 is a Sanyo Denki San Ace 40 (Model 109P0412K3193) is a highly specialized, industrial-grade 12V DC micro axial cooling fan measuring 40 × 40 × 28 mm. The secondary string 010513P printed on the label represents the manufacturer lot/date production code
  • San Ace 40 109P0412K3193 010513P Part Number Breakdown:
    • 'San' derived from the company name, Sanyo Denki
    • 'Ace' symbolizing top tier or industry-leading quality
    • '40' indicates the outer frame dimensions of the fan housing in millimeters
    • '109P' Standard DC Axial Fan / 9P series architecture
    • '04' 40 mm square frame profile
    • '12' 12V DC nominal power rating
    • 'K' Ultra-High Speed performance tier (15,500 RPM)
    • '3' 28 mm thick chassis
    • '193' Internal Sanyo Denki factory code denoting specialized custom wire leads, connector terminals, or unique pulse sensors assigned for a specific enterprise client
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '010513P' is the manufacturing tracking code (lot code / production date code)
        • '01' Represents the Day of the month the fan was assembled
        • '05' Represents the Month of production (May) the point where the wires exit the fan housing to the edge of the plastic connector terminal
        • '13' Represents the Year of manufacture (2013)
        • 'P' Denotes the internal Factory / Production Line identification code where the unit was assembled and underwent quality control testing
  • Pulled from iOmega 1U Rackmount NAS 440R.
  • Serial Number Available or Sold:
    • Batch 010513P, SN 0112188 Used
    • Batch 010513P, SN 0112189 Used
    • Batch 010513P, SN 0112190 Used
