Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

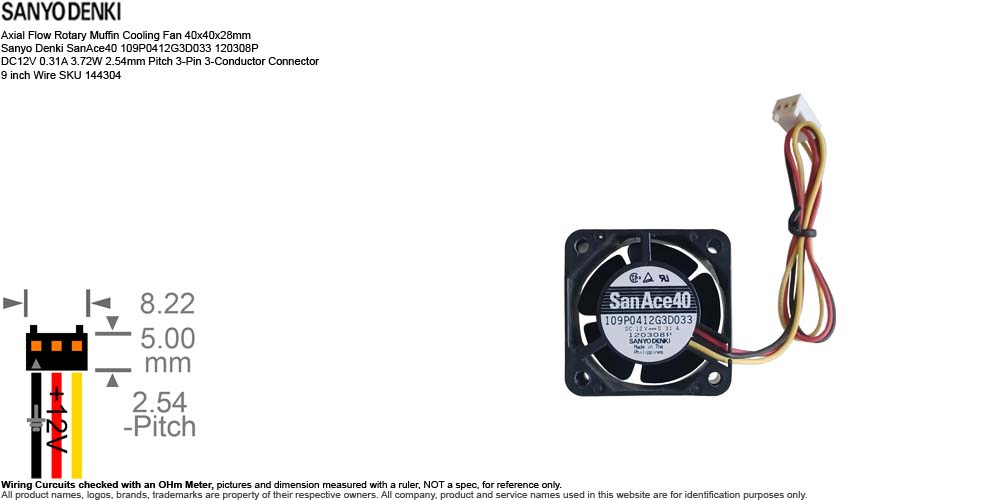

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Sanyo Denki San Ace 40 109P0412G3D033 120308P DC12V 0.31A 3.72W 2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch Wire SKU 144304
• Manufacturer: Sanyo Denki  Co., Ltd.
• Brand: or Distributor:
  • Sanyo Denki
  • iOmega
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sanyo Denki San Ace 40 109P0412G3D033 120308P
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.31A 3.72W
  • Bearing: Dual Ball Bearing
  • Speed: 11,500 RPM
  • Air Flow: 14.8 CFM
  • Noise Level: 42 dB(A)
  • Material: Plastics UL 94V-0 Flammability
    • Frame Housing: Plastics UL 94V-0 Flammability
    • Impeller Blades: Plastics UL 94V-0 Flammability
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 9-inch
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Sanyo Denki San Ace 40 109P0412G3D033 Key Features & Primary Applications:
    • Locked Rotor Sensor: (custom D-type code outputs a signal when the fan is stopped or malfunctioning). Reverse Polarity Protection: an expected long service life of 40,000 hours at 60°C
    • Crucial cooling within dense architectures including 1U/2U server enclosures, networking switches, power supplies, industrial inverters, and small form-factor telecom equipment.
  • San Ace 40 109P0412G3D033 120308P Part Number Breakdown:
    • 'San' derived from the company name, Sanyo Denki
    • 'Ace' symbolizing top tier or industry-leading quality
    • '40' indicates the outer frame dimensions of the fan housing in millimeters
    • '109P' Standard DC Axial Fan / 9P series architecture
    • '04' 40 mm square frame profile
    • '12' 12V DC nominal power rating
    • 'G' G Speed performance tier (11,500 RPM)
    • '3' 28 mm thick chassis
    • 'D' Sensor Customization: Special Sensor / Control Specification
    • '03' Signal Type Pulse Sensor (Tachometer output / Locked output)
    • '3' Manufacturing Options, Custom factory code (typically lead-free compliance or special connector)
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '120308P' is the manufacturing tracking code (lot code / production date code)
        • '12' The year of manufacture (2012)
        • '03' The month of manufacture (March)
        • '08' The exact day of manufacture (8th)
        • 'P' The trailing letter P is an internal factory tracking code. It identifies the specific assembly line, shift, or material lot used during that day's production run. This allows Sanyo Denki to trace quality control back to a specific batch if needed.
  • Pulled from Dell Sonicwall Pro 3060 1U Rackmount Firewall
  • Serial Number Available or Sold:
    • SN 0099307 Used
    • SN 0099308 Used
    • SN 0099309 Used
    • SN 0099310 Used
