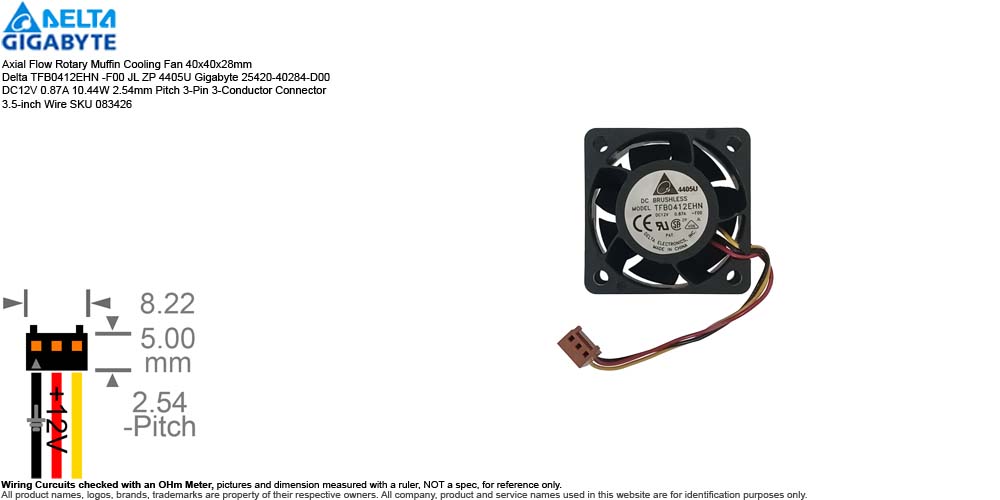

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Delta TFB0412EHN -F00 JL ZP 4405U Gigabyte 25420-40284-D00 DC12V 0.87A 10.44W 2.54mm Pitch 3-Pin 3-Conductor Connector 3.5-inch Wire SKU 083426
• Manufacturer: Delta Electronics Inc.
• Brand: or Distributor: Delta / Gigabyte
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta TFB0412EHN -F00 JL ZP 4405U
  • Gigabyte 25420-40284-D00
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.87A 10.44W
  • Bearing: Dual Ball Bearing
  • Speed: 15,000 RPM
  • Air Flow: 26.03 CFM
  • Noise Level: 58.0 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 3.5-inch
• Weight: 1.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta TFB0412EHN is a 40mm x 40mm x 28mm high-performance, high-static pressure DC brushless axial cooling fan. Manufactured by Delta Electronics, it is built primarily for tightly packed enterprise hardware
  • Delta TFB0412EHN -F00 JL ZP 4405U Part Number Breakdown:
    • 'TF' Product series designator (Structural layout/blade geometry series)
    • 'B' Indicates a Ball Bearing system
    • '04' Frame Size 40mm width and height
    • '12' Voltage 12 Volts DC operating voltage
    • 'EH' Performance speed profile—stands for Extreme High speed output
    • 'N' Thickness 28mm frame thickness
    • '-F00' Specifies the exact built-in output module; -F00 features a 3-wire termination with Frequency Generator (Tachometer/Speed Sensor) to monitor current RPM
    • 'JL ZP' Factory Marks Delta internal regulatory, plant, or safety compliance codes (e.g., automated production line codes)
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '4405U' is Delta's manufacturing Date/Lot Code
      • '44' The week of production (the 44th week of the year, which falls around late October or early November)
      • '05' The year of production (2005)
      • 'U' The factory or assembly line code designating the specific Delta manufacturing facility where the fan was built
  • Pulled from Gigabype GS-SR147S Platform Solution 1U Rackmount Server.
  • Serial Number Available or Sold:
    • Batch 4405U SN 0083426 Used
    • Batch 4405U SN 0083427 Used
