Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

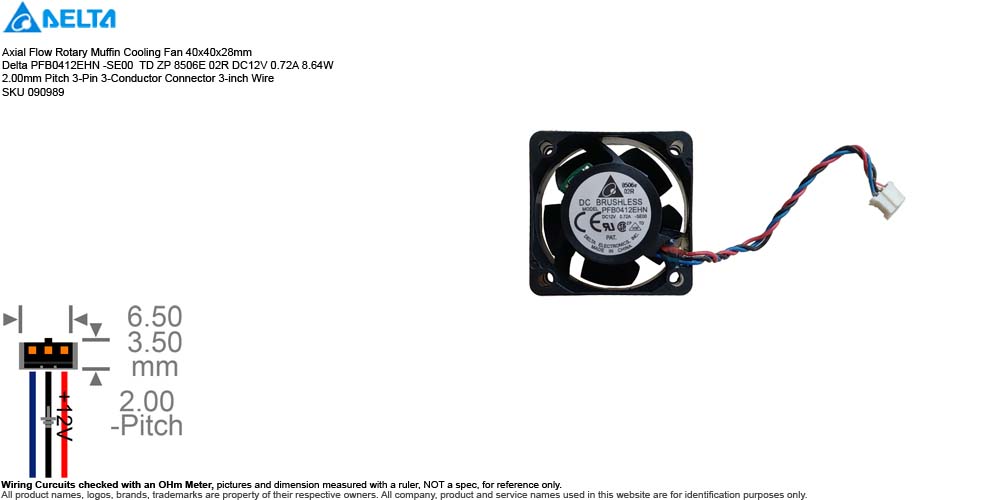

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Delta PFB0412EHN -SE00 TD ZP 8506E 02R DC12V 0.72A 8.64W 2.00mm Pitch 3-Pin 3-Conductor Connector 3-inch Wire SKU 090989
• Manufacturer: Delta Electronics Inc.
• Brand: or Distributor: Delta
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta PFB0412EHN -SE00 TD ZP 8506E 02R
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.72A 8.64W
  • Bearing: Dual Ball Bearing
  • Speed: 16,000 RPM
  • Air Flow: 21.8 CFM
  • Noise Level: 54.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: High-strength PBT plastic molded into an optimized 5-blade configuration
  • Connection: 2.00mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 3-inch
  • Protective Finger Guard Included
• Weight: 1.6 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta PFB0412EHN -SE00 is a 40mm x 40mm x 28mm high-performance, high-static pressure DC brushless axial cooling fan. Manufactured by Delta Electronics, it is built primarily for tightly packed enterprise hardware
  • PFB0412EHN -SE00 TD ZP 8506E 02R Part Number Breakdown:
    • 'PFB' Series Name Delta High-Static Pressure Flange Series
    • '04' Frame Size 40mm x 40mm dimension
    • '12' Voltage Rated for 12V DC input
    • 'EH' Airflow/Speed Duty "Extra High" speed classification
    • 'N' Frame Thickness 28mm thickness profile ("4028" form factor)
    • '-SE00' Control/Function Code Custom OEM configuration. Indicates a specific wiring harness arrangement (often 3-wire or custom pinout length) with locked rotor/tachometer features
    • 'TD ZP' Internal Codes Delta production batch designations, agency testing identifiers, or environmental safety compliance markers
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '8506E 02R' Lot / Date Code Factory-specific tracking codes defining the precise assembly shift, plant line, and manufacturing date index
  • Serial Number Available or Sold:
    • SN 0090989 Used
