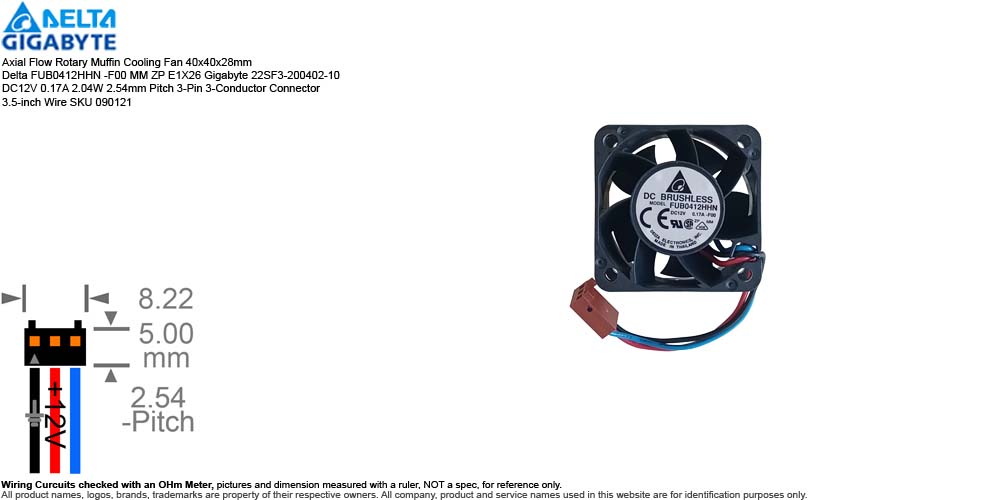

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Delta FUB0412HHN -F00 MM ZP E1X26 Gigabyte 22SF3-200402-10 DC12V 0.17A 2.04W 2.54mm Pitch 3-Pin 3-Conductor Connector 3.5-inch Wire SKU 090121
• Manufacturer: Delta Electronics Inc.
• Brand: or Distributor: Delta / Gigabyte
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta FUB0412HHN -F00 MM ZP E1X26
  • Gigabyte 22SF3-200402-10
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.17A 2.04W
  • Bearing: Dual Ball Bearing
  • Speed: 8000 RPM
  • Air Flow: 13.24 CFM
  • Noise Level: 41.0 dB(A)
  • Material: Plastic (UL 94V-0 Flammability Rating)
    • Frame Housing: Plastic (UL 94V-0 Flammability Rating)
    • Impeller Blades: Plastic (UL 94V-0 Flammability Rating)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 3.5-inch
• Weight: 1.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta Delta FUB0412HHN -F00 is an axial cooling fan (specifically configured as an OEM part for Gigabyte equipment under part number 22SF3-200402-10)
  • Delta FUB0412HHN -F00 MM ZP E1X26 Gigabyte 22SF3-200402-10 Part Number Breakdown:
    • 'FUB/FFB' Fan Series Fast-axial, high-static pressure server class fans. (Note: "FUB" is typically an updated or customized regional iteration of the foundational "FFB" series footprint)
    • '04' Frame Size (40mm x 40mm)
    • '12' Rated Voltage (12 VDC)
    • 'HH' Speed Classification (High-High Speed)
    • 'N' Frame Thickness / Geometry Designation (28mm thick)
    • '-F00' Function Identifier: Equipped with a 3-wire design featuring a Tachometer/Frequency Generator output (used by the motherboard to track the fan’s active RPM)
    • 'MM' (Manufacturing Line & Material Code) This specifies the exact Delta assembly line, factory origin, and the specific plastic mold/material batch used to manufacture the frame and impeller
    • 'ZP' (Impedance Protected) Globally used in electric motor and fan manufacturing, ZP indicates that the fan motor is Impedance Protected. This is a vital safety feature ensuring that if the fan blades get physically blocked or jammed (a locked rotor condition), the electrical impedance of the motor windings will naturally restrict the electrical current. This prevents the fan from overheating, melting, or catching fire while jammed.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'E1X26' Internal Batch Tracking: Factory production lot codes and geometric alignment variations specific to Delta's assembly line.
    • 'Gigabyte 22SF3-200402-10' OEM SKU: The exact proprietary serial number assigned by Gigabyte for sourcing this unit to cool server nodes, workstation boards, or localized graphics processor enclosures
  • Serial Number Available or Sold:
    • Batch E1X26 SN 0090121 Used
