Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

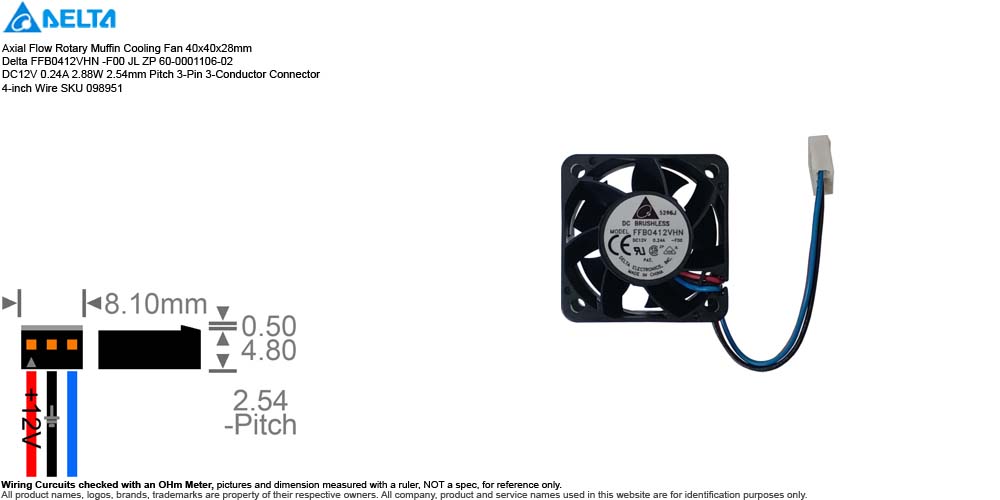

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Delta FFB0412VHN -F00 JL ZP 60-0001106-02 DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 4-inch Wire SKU 098951
• Manufacturer: Delta Electronics Inc.
• Brand: or Distributor: Delta / HP
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta FFB0412VHN -F00 JL ZP
  • 60-0001106-02 (Assembly Number)
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Dual Ball Bearing
  • Speed: 9500 RPM
  • Air Flow: 15.79 CFM
  • Noise Level: 45.0 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: High-strength PBT plastic molded into an optimized 5-blade configuration
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 4-inch
• Weight: 1.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta FFB0412VHN is a 40mm x 40mm x 28mm high-performance, high-static pressure DC brushless axial cooling fan. Manufactured by Delta Electronics, it is built primarily for tightly packed enterprise hardware
  • Delta FFB0412VHN -F00 JL ZP 60-0001106-02 5206J / 52215 Part Number Breakdown:
    • 'FFB' Delta Series Fan series designation, Frame rib type, Ball bearing architecture
    • '04' Frame Size 40mm width and height
    • '12' Voltage 12 Volts DC operating voltage
    • 'VH' Speed Level Very High speed rating profile (9500 RPM)
    • 'N' Thickness 28mm frame thickness
    • '-F00' Output Option Tachometer output signal type (3rd wire frequency generator sensor)
    • 'JL ZP' Factory Marks Delta internal regulatory, plant, or safety compliance codes (e.g., automated production line codes)
    • '60-0001106-02' OEM Part ID Vendor assembly control part number (commonly referenced in Brocade, HP, and Cisco internal hardware bills of materials)
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '5206J' Date / Lot Code Production batch tracking matrix code
      • '52215' Date / Lot Code Production batch tracking matrix code
  • Pulled from HP AA978A StorageWorks SAN switch 2/16 Series HSTNM-N001
  • Serial Number Available or Sold:
    • Batch 5206J SN 0098951 Used
    • Batch 5206J SN 0098952 Used
    • Batch 5206J SN 0098953 Used
    • Batch 5206J SN 0098954 Used
    • Batch 52215 SN 0098951 Used
    • Batch 52215 SN 0098952 Used
    • Batch 52215 SN 0098953 Used
    • Batch 52215 SN 0098954 Used
    • Batch 52215 SN 0098955 Used
    • Batch 52215 SN 0098956 Used
    • Batch 52215 SN 0098957 Used
    • Batch 52215 SN 0098958 Used
    • Batch 52215 SN 0098959 Used
    • Batch 52215 SN 0098960 Used
