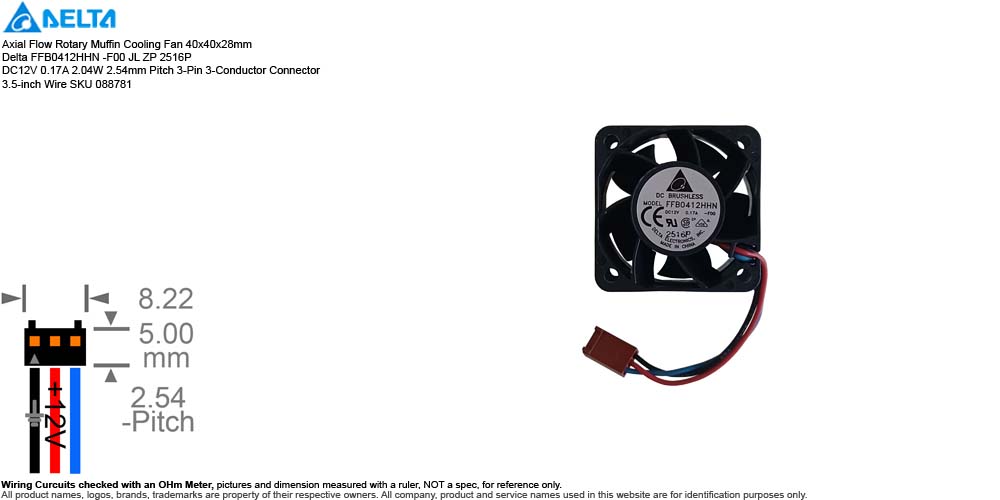

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x28mm Delta FFB0412HHN -F00 JL ZP 2516P DC12V 0.17A 2.04W 2.54mm Pitch 3-Pin 3-Conductor Connector 3.5-inch Wire SKU 088781
• Manufacturer: Delta Electronics Inc.
• Brand: or Distributor: Delta
• Model: (and/or Compatible, Equivalent, Interchangeable)
  •  Delta FFB0412HHN -F00 JL ZP 2516P
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x28mm
  • Power Rating: DC12V 0.17A 2.04W
  • Bearing: Dual Ball Bearing
  • Speed: 8000 RPM
  • Air Flow: 13.24 CFM
  • Noise Level: 41.0 dB(A)
  • Material: Plastic (UL 94V-0 Flammability Rating)
    • Frame Housing: Plastic (UL 94V-0 Flammability Rating)
    • Impeller Blades: Plastic (UL 94V-0 Flammability Rating)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 3.5-inch
• Weight: 1.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta FFB0412HHN -F00 is a high-performance 40x40x28mm DC axial cooling fan. Below is the comprehensive breakdown of its technical specifications, features, applications, and part number structure based on the official Delta Electronics documentation
  • Delta FFB0412HHN -F00 JL ZP 2516P Part Number Breakdown:
    • 'FFB' Fan Series (High-performance axial flow series featuring unique blade geometric designs)
    • '04' Frame Size (40mm x 40mm)
    • '12' Rated Voltage (12 VDC)
    • 'HH' Speed Classification (High-High Speed)
    • 'N' Frame Thickness / Geometry Designation (28mm thick)
    • '-F00' Function Type Sensor Option (3-wire configuration featuring a Frequency Generator / Tachometer Output signal)
    • 'JL ZP' Internal Delta factory location, line production stamps, or regulatory sub-compliance codes
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '2516P' Production Lot/Date Code stamp (typically referencing the production year, workweek, and shift batch, indicating it was processed under specific factory lot runs)
  • Serial Number Available or Sold:
    • Batch 2516P SN 0088781 Used
    • Batch 2516P SN 0088782 Used
    • Batch 2516P SN 0088783 Used
