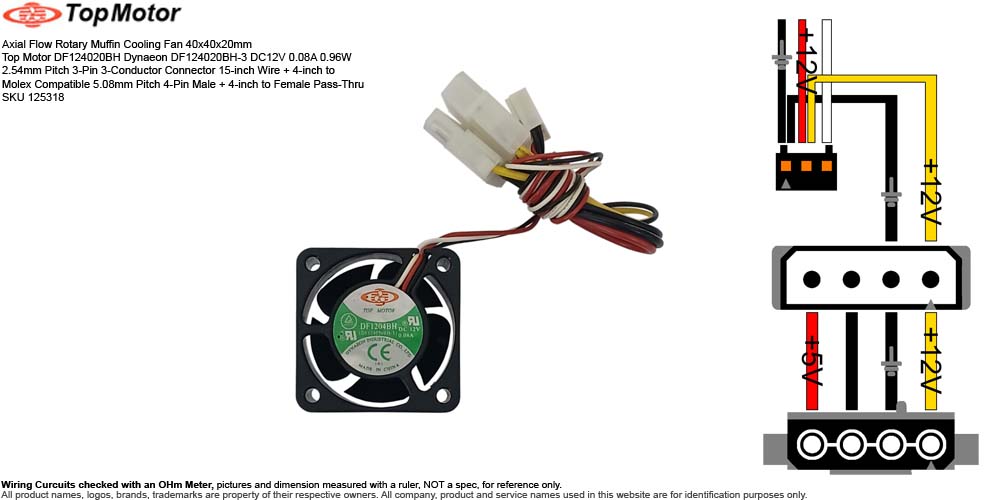

Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Top Motor DF124020BH Dynaeon DF124020BH-3 DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 15-inch Wire + 4-inch to Molex Compatible 5.08mm Pitch 4-Pin Male + 4-inch to Female Pass-Thru SKU 125318

Axial Flow Rotary Muffin Cooling Fan 40x40x20mm
Top Motor DF1204BH Dynaeon DF124020BH-3 DC12V 0.08A 0.96W
2.54mm Pitch 3-Pin 3-Conductor Connector 10-inch Wire + 4-inch to
Molex Compatible 5.08mm Pitch 4-Pin Male + 4-inch to Female Pass-Thru
SKU 125318
FN-4020-xxx

Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

Description: Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Top Motor DF1204BH Dynaeon DF124020BH-3 DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 15-inch Wire + 4-inch to Molex Compatible 5.08mm Pitch 4-Pin Male + 4-inch to Female Pass-Thru SKU 125318
Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
Brand and Distributor:
- Dynatron Corp. (the global brand)
- Top Motor (the product line)
Model: (Compatible, Equivalent, & Interchangeable)
- Top Motor DF1204BH
- Dynaeon DF124020BH-3
Brief Spec.:
- Design: DC Brushless Fan
- Fan Size: 40x40x20mm
- Power Rating: DC12V 0.08A 0.96W
- Bearing: Double Ball Bearing
- Speed: 9000 RPM
- Air Flow: 10.51 CFM
- Noise Level: 38.2 dB(A)
- Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  - Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  - Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
- Connection:
  - 2.54mm Pitch 3-Pin 3-Conductor Connector
  - Molex Compatible 5.08mm Pitch 4-Pin Male to Female Pass-Thru
- Overall Wire Length: 23-inch
  - 15-inch: Fan to 2.54mm Pitch 3-Pin 3-Conductor Connector
  - 4-inch: 2.54mm Pitch 3-Pin 3-Conductor Connector to Molex Compatible 5.08mm Pitch Male Connector
  - 4-inch: Molex Compatible 5.08mm Pitch Male Connector to Female Connector
Weight: 1.4 oz (estimated shipping weight 6 oz)
Condition: (Subject to Availability)
- SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller repackaged.
- SKU ______E - Excess Inventory, not been used, may have signs of age.
- SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O - Open Box, new, originally bulk in master carton, seller repackaged.
- SKU ______R - Refurbished to working condition.
- SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
For used with or pulled from: (for reference only)
- The Top Motor DF1204BH Dynaeon DF124020BH-3 is an axial cooling fan, manufactured by Dynaeon Industrial Co., Ltd (commonly branded or distributed under Dynatron / Top Motor)
- DF1204BH DF124020BH-3 Part Number Breakdown:
  - 'DF' Dynaeon DC Fan series.
  - '12' 12V DC operating voltage.
  - '04 / 4020' Physical dimension footprint (40mm width/height x 20mm depth/thickness).
  - 'B' Dual Ball bearing system.
  - 'H' High speed/performance tier (relative to their 'L' low or 'M' medium speed alternatives).
  - '-3' Designates a 3-wire/3-pin configuration, which includes standard power leads plus a tachometer signal line for system RPM monitoring.
- Serial Number Available or Sold:
  - SN 0090889 New Open Box
  - SN 0090890 New Open Box
  - SN 0090891 New Open Box
  - SN 0090892 New Open Box
  - SN 0090893 New Open Box
  - SN 0090894 New Open Box
  - SN 0090895 New Open Box
  - SN 0090896 New Open Box
  - SN 0090897 New Open Box
