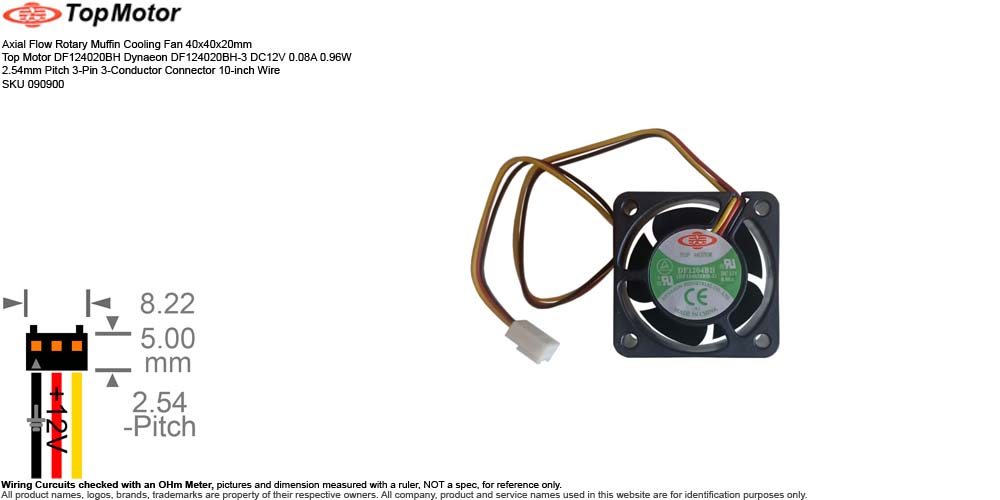

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Top Motor DF1204BH Dynaeon DF124020BH-3 DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 10-inch Wire SKU 090900
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • Top Motor DF1204BH
  • Dynaeon DF124020BH-3
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x20mm
  • Power Rating: DC12V 0.08A 0.96W
  • Bearing: Double Ball Bearing
  • Speed: 9000 RPM
  • Air Flow: 10.51 CFM
  • Noise Level: 38.2 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection:
    • 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 10-inch
• Weight: 0.9 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, new, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF1204BH Dynaeon DF124020BH-3 is an axial cooling fan, manufactured by Dynaeon Industrial Co., Ltd (commonly branded or distributed under Dynatron / Top Motor)
  • DF1204BH DF124020BH-3 Part Number Breakdown:
    • 'DF' Dynaeon DC Fan series.
    • '12' 12V DC operating voltage.
    • '04 / 4020' Physical dimension footprint (40mm width/height x 20mm depth/thickness).
    • 'B' Dual Ball bearing system.
    • 'H' High speed/performance tier (relative to their 'L' low or 'M' medium speed alternatives).
    • '-3' Designates a 3-wire/3-pin configuration, which includes standard power leads plus a tachometer signal line for system RPM monitoring.
  • Serial Number Available or Sold:
    • SN 0090900 New Open Box
