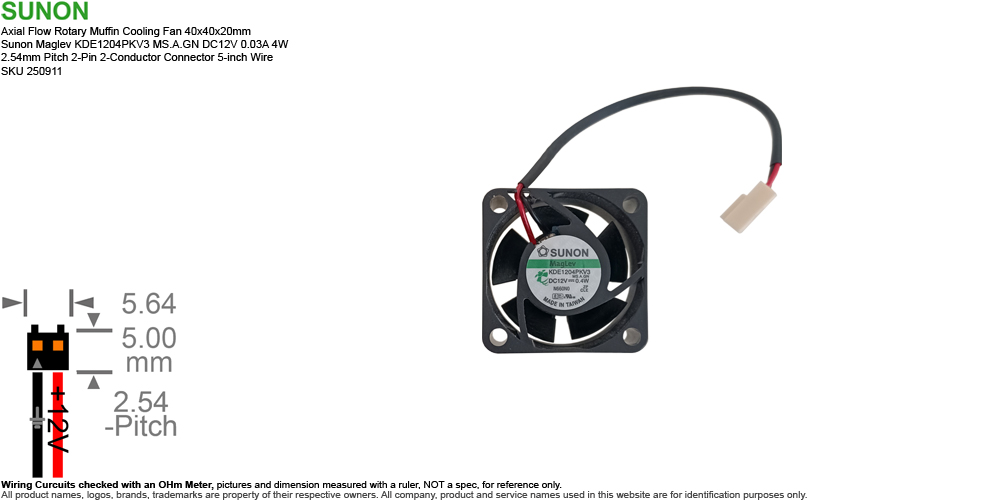

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Sunon Maglev KDE1204PKV3 MS.A.GN ZP CLE N660N0 DC12V 0.03A 4W 2.54mm Pitch 2-Pin 2-Conductor Connector 5-inch Wire SKU 250911
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor:
  • Sunon
  • Juniper Network
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • Sunon Maglev KDE1204PKV3 MS.A.GN ZP CLE N660N0
  • Seller's SKU 250911
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x20mm
  • Power Rating: DC12V 0.033A (33mA) 0.4W
  • Bearing: Vapo-Bearing / MagLev (Magnetic Levitation System)
  • Speed: 5200 RPM +/- 15%
  • Air Flow: 6.3~6.8 CFM
  • Noise Level: 18 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 5-inch
• Weight: 1.2 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • The Sunon Maglev KDE1204PKV3 MS.A.GN is a 40x40x20 mm ultra-quiet axial cooling fan that features a patented magnetic levitation motor architecture. This framework eliminates physical contact between the shaft and bearing, drastically reducing friction, noise, and mechanical wear.
  • KDE1204PKV3 MS.A.GN ZP CLE N660N0 Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Fan Series
    • 'E' Motor Type Electronically Commutated (Standard Maglev structure)
    • '12' 12V DC rated operational voltage
    • '04' 40mm Frame Width / Height
    • 'P' Frame Thickness 20 mm Deep
    • 'K' Frame Geometry Square Profile Frame
    • 'V3' Speed Level Low Speed (V1 = High, V2 = Medium, V3 = Low)
    • 'MS' Generation Maglev Design / Basic Motor Specification
    • '.A' Function Code Auto-Restart Protection / Electrical Feature
    • '.GN' Compliance Eco-friendly materials (RoHS Compliant)
    • 'ZP' (Impedance Protection) Indicates the motor is Impedance Protected. If dust or debris blocks the fan blades, the inner coil geometry physically constricts the current draw to prevent overheating, thermal runaway, or component fire
    • 'CLE' (Custom Low-Noise Tuning) A legacy engineering code indicating specialized, ultra-quiet blade profiles tailored for high-end server or desktop acoustics.
    • 'N660N0' A proprietary customer and warehouse processing code. It tells the assembly factory the exact wire length, lead configuration (e.g., standard 3-pin connector with tachometer line), and terminal packaging required by the OEM client.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'N660N0' A proprietary customer and warehouse processing code. It tells the assembly factory the exact wire length, lead configuration (e.g., standard 3-pin connector with tachometer line), and terminal packaging required by the OEM client.
  • Pulled from Juniper Network SSG 20 Secure Services Gateway Firewall Appliance
  • Serial Number Available or Sold:
    • SN 0091185 Used
