Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

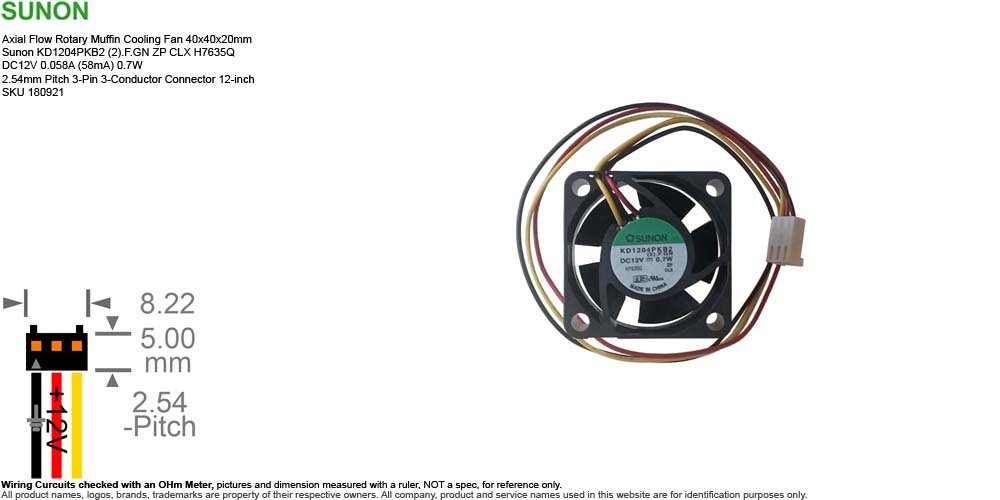

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Sunon KD1204PKB2 (2).F.GN ZP CLX H7635Q DC12V 0.058A (58mA) 0.7W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch SKU 180921
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor:
  • Sunon
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • Sunon KD1204PKB2 (2).F.GN ZP CLX H7635Q
  • Seller's SKU 180921
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x20mm
  • Power Rating: DC12V 0.058A (58mA) 0.7W
  • Bearing: Dual Ball Bearing
  • Speed: 6200 RPM
  • Air Flow: 7.7~8.0 CFM
  • Noise Level: 22~29 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 12-inch
• Weight: 1.1 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, unused, pulled from unused External SCSI Enclosure.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • The Sunon KD1204PKB2 (2).F.GN is an industrial-grade, 40mm axial DC cooling fan engineered by Sunon Fans. It features a compact design, a highly reliable dual ball bearing system, and built-in impedance protection.
  • KD1204PKB2 (2).F.GN ZP CLX H7635Q Part Number Breakdown:
    • 'KD' Fan Series KD Series (Traditional DC Brushless Fan design)
    • '12' 12V DC rated operational voltage
    • '04' 40mm Frame Width / Height
    • 'P' Frame Material PBT Plastic construction
    • 'K' Frame Thickness 20 mm housing thickness
    • 'B' Bearing System Ball Bearing (Dual Ball configuration)
    • '2' Performance Speed Middle Speed profile tier
    • '.F' Function Type Frequency Generator / Tachometer signal (3rd wire for RPM tracking)
    • '.GN' Environmental RoHS Compliant / Green Specification
    • 'ZP' Protection Code Impedance Protected / Auto-Restart function
    • 'CLX' tells the factory to attach a specific proprietary wire harness, such as a 3-pin or 4-pin Molex peripheral connector with custom pin orientations, and the lead wires (e.g., cut exactly to 6 inches, 12 inches, etc.) to perfectly fit the internal layout of the customer's hardware enclosure.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'H7635Q' "H7635Q" is a factory lot control number and internal manufacturing date code
  • Pulled from pulled from specific PDE Technology External SCSI Enclosure.
  • Serial Number Available or Sold:
    • SN 0083164 Unused Open Box
    • SN 0093001 Unused Open Box
