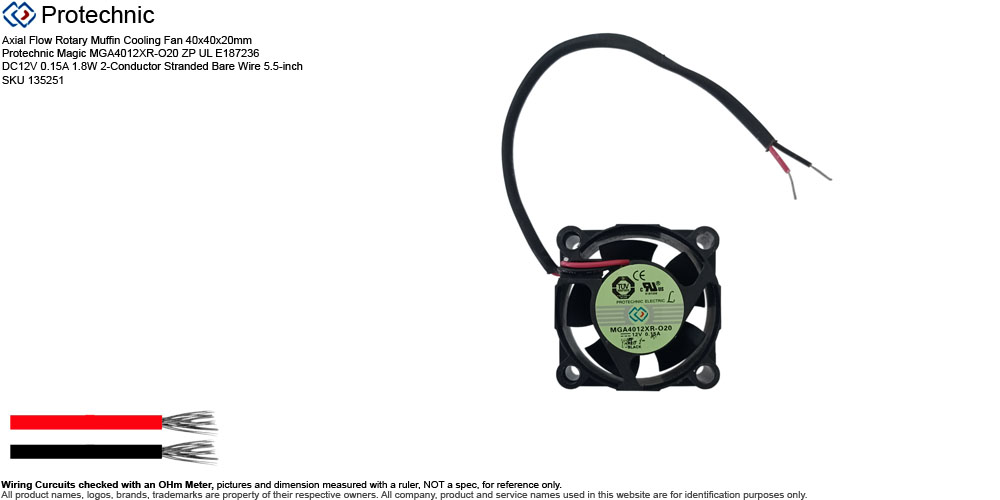

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x20mm Protechnic Magic MGA4012XR-O20 ZP UL E187236 DC12V 0.15A 1.8W 2-Conductor Stranded Bare Wire 5.5-inch SKU 135251
• Manufacturer:
  • Protechnic Electric Co., Ltd.
• Brand or Distributor:
  • Protechnic / Magic
• Model:
  • Protechnic Magic MGA4012XR-O20 ZP UL E187236
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x20mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Hydraulic / Fluid Dynamic Bearing (FDB)
  • Speed: 6500~7500 RPM
  • Air Flow: 7.5~9.5 CFM
  • Noise Level: 26~30 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wires
  • Overall Wire Length: 5.5-inch
• Weight: 0.9 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Protechnic Magic MGA4012XR-O20 utilized as a primary or auxiliary heat-dissipation unit in 1U network switch hardware, server power supplies, small form-factor inverters, and network storage (NAS) enclosures.
  • MGA4012XR-O20 ZP  Part Number Breakdown:
    • 'MG' Magic Series Protechnic's core brushless DC axial fan product family
    • 'A' Fan Type Axial flow fan framework
    • '40' Frame Size 40mm width and height
    • '12' Voltage 12V DC nominal input voltage
    • 'X' Performance / Bearing Mid-High tier aerodynamic performance curve utilizing an optimized bearing profile
    • 'R' Function/Output Typically designates standard 2-wire output or specific tachometer/locked signal characteristics
    • '-O' Design Generation Part of the legacy high-pressure housing series
    • '20' Thickness 20mm depth housing profile
    • 'ZP' Customer/Internal Suffix Special regulatory engineering trace code (e.g., Impedance protection, specialized connector terminal)
  • Serial Number Available or Sold:
    • SN 0094158 Used
    • SN 0094159 Used
