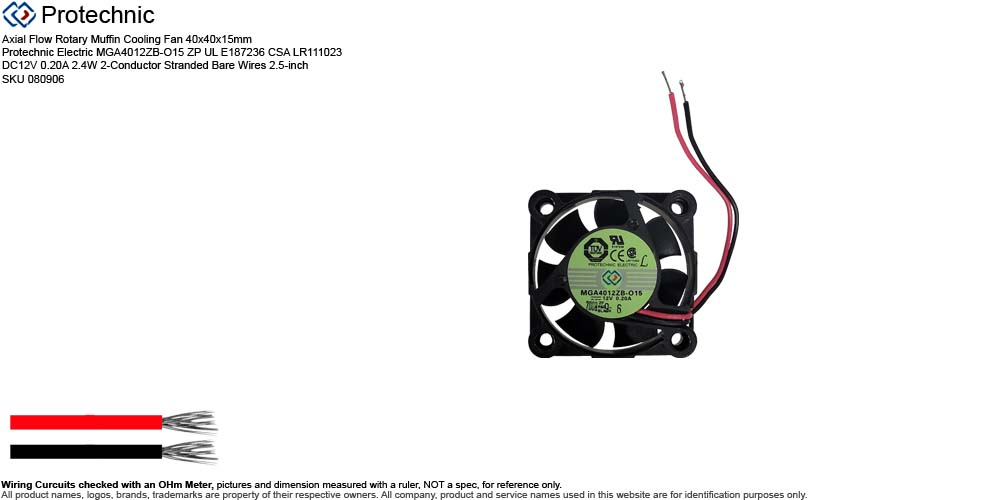

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x15mm Protechnic Electric MGA4012ZB-O15 ZP UL E187236 CSA LR111023 DC12V 0.20A 2.4W 2-Conductor Stranded Bare Wires 2.5-inch SKU 080906
• Manufacturer: Dongguan Protechnic Electric Co., Ltd
• Brand or Distributor:
  • Protechnic Electric
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • Protechnic Electric MGA4012ZB-O15 ZP
  • Seller's SKU 080906
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x15mm
  • Power Rating: DC12V 0.20A 2.4W
  • Bearing: Dual Ball Bearing
  • Speed: 9500 RPM
  • Air Flow: 12.75 CFM
  • Noise Level: 40.2 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wires
  • Overall Wire Length: 2.5-inch
• Weight: 0.7 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • The Protechnic Electric MGA4012ZB-O15 is a 40x40x15 mm ultra-quiet axial cooling fan that features a patented magnetic levitation motor architecture. This framework eliminates physical contact between the shaft and bearing, drastically reducing friction, noise, and mechanical wear.
  • MGA4012ZB-O15 ZP Part Number Breakdown:
    • 'MG' Magic Series product line identifier
    • 'A' Axial Flow rotary fan configuration
    • '40' 40mm Frame Width/Length dimensions
    • '12' 12V DC rated operating voltage
    • 'Z' Extra/Ultra High Speed performance tier designation
    • 'B' Ball Bearing motor construction type
    • 'O15' 15mm Frame Thickness/Height dimension
    • 'ZP' Factory-assigned suffix specifying electronic features. Z usually indicates Locked Rotor Protection (Auto-Restart capability), and P denotes PWM (Pulse Width Modulation) speed control or unique termination pinning
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '2008.9.6' the Date Code, indicating the exact date the unit was manufactured.
  • Serial Number Available or Sold:
    • SN 0090883 Used
