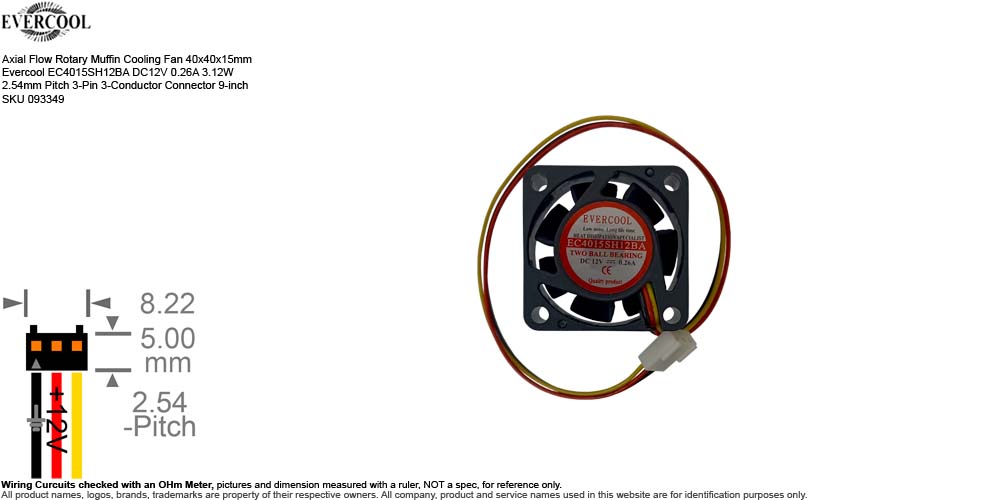

Axial Flow Rotary Muffin Cooling Fan
40x40x15mm
Evercool EC4015SH12BA DC12V
0.26A 3.12W
2.54mm Pitch 3-Pin 3-Conductor Connector 9-inch
SKU 093349
FN-4015-xxx
Features Applications RPM
CFM dBA Bearing System Frame Impeller Material Part Number Breakdown
- Description:
Axial Flow Rotary Muffin Cooling Fan 40x40x15mm Evercool
EC4015SH12BA DC12V 0.26A 3.12W 2.54mm Pitch 3-Pin 3-Conductor
Connector 9-inch SKU 093349
- Manufacturer:
Evercool Thermal
Co., Ltd.
- Brand or Distributor:
- Model: (and/or Compatible,
Equivalent, Interchangeable)
-
Evercool EC4015SH12BA
- Seller's SKU 093349
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
40x40x15mm
- Power Rating:
DC12V 0.26A 3.12W
- Bearing:
Dual Ball Bearing
- Speed:
10,000 RPM +/- 15%
- Air Flow:
8.74 CFM
- Noise Level:
36 dB(A)
- Material:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
- Connection:
2.54mm Pitch 3-Pin 3-Conductor Connector
- Overall
Wire Length: 9-inch
- Weight: 0.9 oz
(estimated shipping weight 5 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For parts or not working, As-Is. Not eligible for return or refund
- SKU ______O -
Open Box, new, bulk package in master carton, seller repackaged.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may
with
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box or Plastic Bag
- For used with
or pulled from: (for reference only)
- Evercool
EC4015SH12BA Features:
-
High-Velocity Airflow:
Delivers maximum heat dissipation for a compact 40mm footprint
by spinning at 10,000 RP
-
3-Pin Connector (3-Wire):
Supports power, ground, and a
Tachometer (FG signal)
wire to monitor fan speed via system BIOS or controllers
-
High-Velocity Airflow:
Delivers maximum heat dissipation for a compact 40mm footprint
by spinning at 10,000 RP
-
EC4015SH12BA Part Number Breakdown:
-
'EC'
Brand Identifier
EVERCOOL (Electronic Components)
-
'40'
Frame Width
40 mm
-
'15'
Frame Thickness
15 mm
-
'S'
Speed Tier
Super High (Ultra High Speed)
- 'H'
Voltage Segment
High-Efficiency Series
- '12'
Rated Voltage
2 Volts DC
- 'B'
Bearing Type
Ball Bearing (Dual Ball)
- 'A'
Signal/Connector Type
3-Pin / 3-Wire Connector with Tachometer
- Serial Number
Available or Sold:
- SN 0090872 New
Open Box
- SN 0090873 New
Open Box
- SN 0090874 New
Open Box
- SN 0090875 New
Open Box
- SN 0090876 New
Open Box
- SN 0090877 New
Open Box
- SN 0090878 New
Open Box
- SN 0090879 New
Open Box
- SN 0090880 New
Open Box
- SN 0090881 New
Open Box
|
