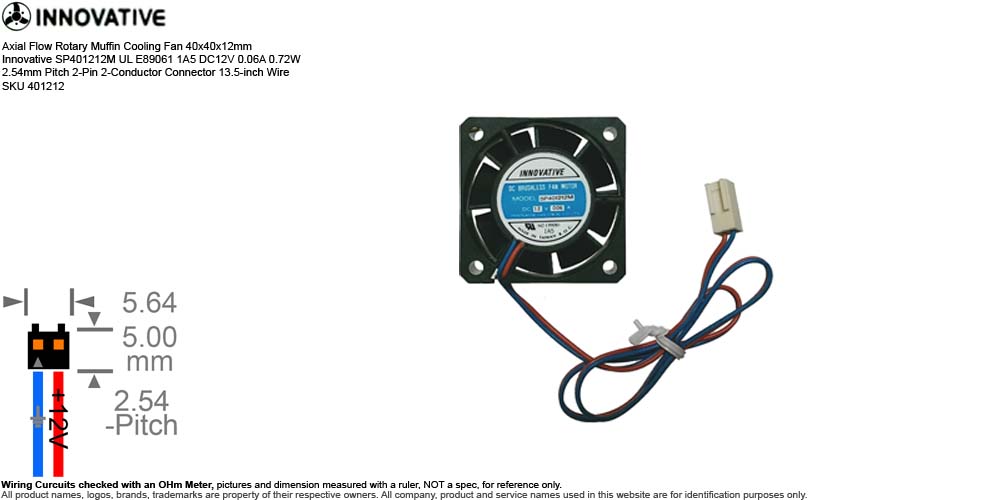

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x12mm Innovative SP401212M UL E89061 1A5 DC12V 0.06A 0.72W 2.54mm Pitch 2-Pin 2-Conductor Connector 13.5-inch Wire SKU 401212
• Manufacturer: Innovative Industrial Co., Ltd.
• Brand or Distributor:
  • Innovative
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • Innovative SP401212M
  • Seller's SKU 401212
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x15mm
  • Power Rating: DC12V 0.06A 0.72W
  • Bearing: Sleeve Bearing
  • Speed: 4,500~4,800 RPM
  • Air Flow: 6.2~6.5 CFM
  • Noise Level: 24~24.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 13.5-inch
• Weight: 0.8 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, unused (pulled from unused PDE Technology External SCSI Enclosure)
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unused PDE Technology External SCSI Enclosure
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • Innovative SP401212M is a 40mm axial DC brushless cooling fan primarily integrated into server power supplies, networking switches, and compact industrial control enclosures. This specific variant carries the Underwriters Laboratories safety certificate code UL E89061
  • SP401212M UL E89061 1A5 Part Number Breakdown:
    • 'SP' Square-profile outer casing design framework
    • '4012' Core physical frame footprint dimensional layout. Matches standard 40mm x 40mm sizing. The exact frame depth profile scales between 10mm and 12mm depending on edge ridges
    • '12' Designed for nominal 12 Volt DC primary supply line inputs
    • 'M' Specifies a Medium output velocity/airflow grading tier
    • 'UL E89061' Certification tracking identifier representing industrial component evaluation guidelines under electric fan classifications
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '1A5' Internal manufacturing run batch iteration, electrical lead config, or harness pin termination specification
  • Pulled from unused PDE Technology External SCSI Enclosure CF-751.
  • Serial Number Available or Sold:
    • SN 0098764 Unused Open Box
    • SN 0098765 Unused Open Box
    • SN 0098766 Unused Open Box
    • SN 0098767 Unused Open Box
    • SN 0098768 Unused Open Box
    • SN 0098769 Unused Open Box
    • SN 0098770 Unused Open Box
    • SN 0098771 Unused Open Box
    • SN 0098772 Unused Open Box
    • SN 0098773 Unused Open Box
    • SN 0098774 Unused Open Box
    • SN 0098775 Unused Open Box
    • SN 0098776 Unused Open Box
