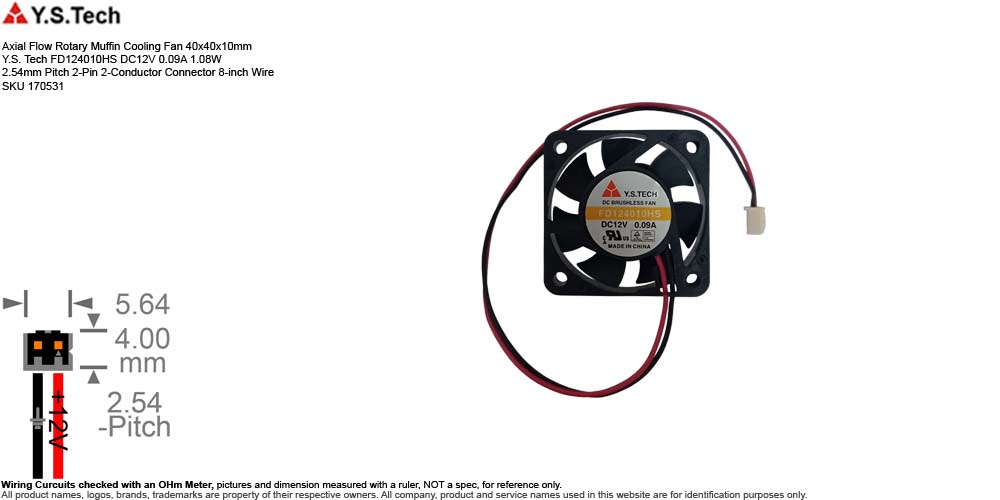

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x12mm Y.S. Tech FD124010HS DC12V 0.09A 1.08W 2.54mm Pitch 2-Pin 2-Conductor Connector 8-inch Wire SKU 170531
• Manufacturer: Y.S. TECH
• Brand or Distributor:
  • Y.S. TECH / CyberPower Systems
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • Y.S. Tech FD124010HS
  • Seller's SKU 170531
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x10mm
  • Power Rating: DC12V 0.09A 1.08W
  • Bearing: Dual Ball Bearing
  • Speed: 7,300 RPM
  • Air Flow: 7.9 CFM
  • Noise Level: 30 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 8-inch
• Weight: 0.5 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, unused (pulled from unused PDE Technology External SCSI Enclosure)
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unused PDE Technology External SCSI Enclosure
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  •
  • FD124010HS Part Number Breakdown:
    • 'FD' Fan Type DC Axial Fan
    • '12' Voltage 12V DC
    • '40' Frame Size 40 mm width/height
    • '10' Frame Thickness 10 mm slim depth
    • 'H' Speed Level High Speed configuration
    • 'S' Custom/Function Code Standard design variation or specific termination configuration
  • Pulled from CyberPower UPS CP1500AVR Battery Backup.
  • Serial Number Available or Sold:
    • SN 0093290~0093300 Used
    • SN 0091971~0091990 Used
    • SN 0093551~0093560 Used
