Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

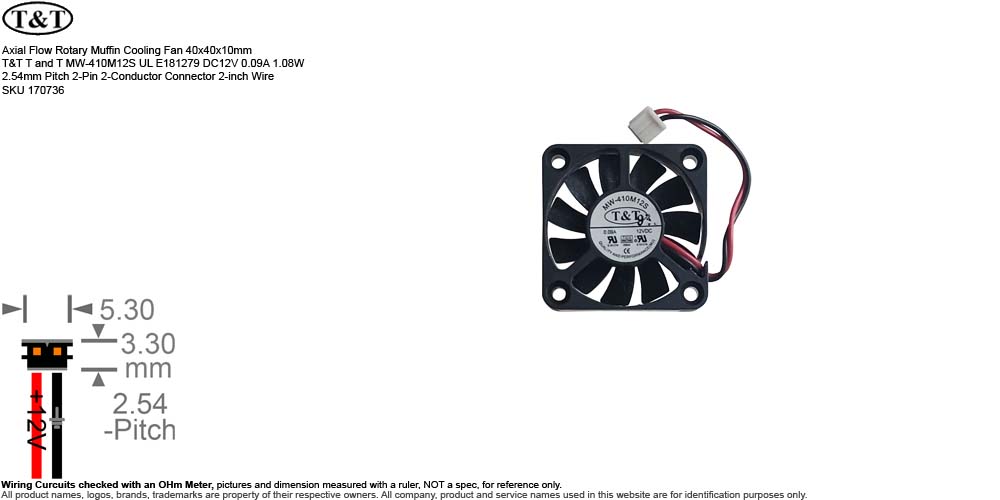

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm T&T T and T MW-410M12S UL E181279 DC12V 0.09A 1.08W 2.54mm Pitch 2-Pin 2-Conductor Connector 2-inch Wire SKU 170736
• Manufacturer: Boyd (ShenZhen) Thermal Systems Ltd (according to UL File Number)
• Brand Name or Distributor: T&T
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • T&T MW-410M12S
  • Seller's SKU 170736
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x10mm
  • Power Rating: DC12V 0.09A 1.08W
  • Bearing: Sleeve Bearing
  • Speed: 4,500~5.500 RPM
  • Air Flow: 5.0~6.5 CFM
  • Noise Level: 22~26 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 2-inch
• Weight: 0.4 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, unused (pulled from unused PDE Technology External SCSI Enclosure)
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (Applications for reference only)
  • The T&T MW-410M12S is a is a compact 40mm x 40mm x 10mm (4010) DC cooling fan commonly used for server racks, industrial control motherboards, IPC systems, and compact electronics
    • Application:
      • Network & Enterprise Gear: Compact 1U/2U server enclosures, network switches, and router cooling banks
      • Industrial Electronics: Mainboards, IPC (Industrial PC) cases, and automated control cabinets
      • Embedded Hardware: 3D printer hot-ends, small power supply units (PSUs), and closed AV equipment racks
  • MW-410M12S Part Number Breakdown:
    • 'MW' Product Series designation (Standard DC Brushless Axial Tubeaxial Fan)
    • '4' Frame Width indicator (Represents a 40mm outer dimension)
    • '10' Frame Thickness/Depth indicator (Represents a slim 10mm profile)
    • 'M' Speed Performance Level code (L = Low Speed / Ultra-Quiet; compared to M for Medium and H for High)
    • '12' Voltage Input rating (Operates on a standard 12V DC rail)
    • 'S' Bearing type designation (Sleeve Bearing structure)
  • Pulled from Dell Optiplex SFF Computer Power Supplies.
  • Serial Number Available or Sold:
    • SN 0111324 Used
