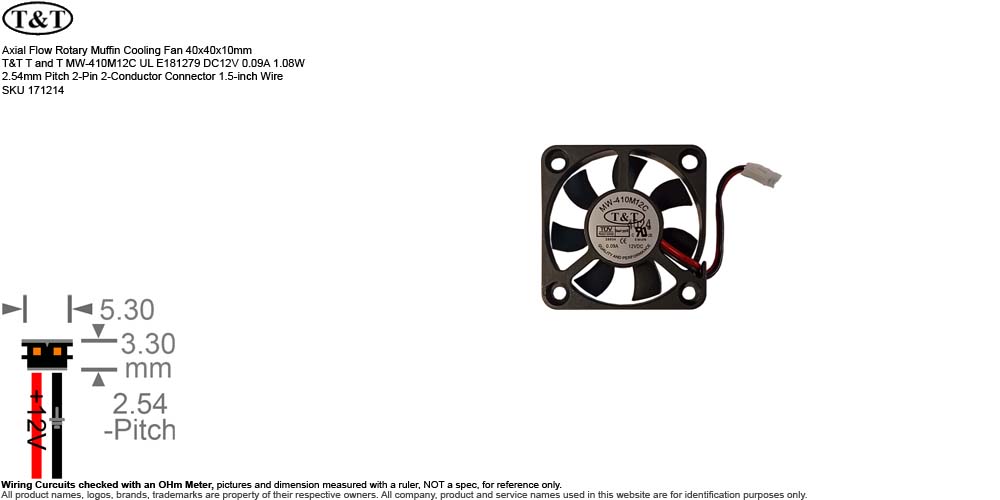

Axial Flow Rotary Muffin Cooling Fan 40x40x10mm T&T T and T MW-410M12C UL E181279 DC12V 0.09A 1.08W 2.54mm Pitch 2-Pin 2-Conductor Connector 1.5-inch Wire SKU 171214

Axial Flow Rotary Muffin Cooling Fan 40x40x10mm
T&T T and T MW-410M12C UL E181279
DC12V 0.09A 1.08W 2.54mm Pitch 2-Pin 2-Conductor Connector 1.5-inch Wire
SKU 171214
FN-4010-xxx

Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm T&T T and T MW-410M12C UL E181279 DC12V 0.09A 1.08W 2.54mm Pitch 2-Pin 2-Conductor Connector 1.5-inch Wire SKU 171214
Manufacturer: Boyd (ShenZhen) Thermal Systems Ltd (according to UL File Number)
Brand Name or Distributor: T&T
Model: (and/or Compatible, Equivalent, Interchangeable)
- T&T MW-410M12C
- Seller's SKU 171214
Brief Spec.:
- Design: DC Brushless Fan
- Fan Size: 40x40x10mm
- Power Rating: DC12V 0.09A 1.08W
- Bearing: Dual Ball Bearing
- Speed: 4,5000~5.500 RPM
- Air Flow: 5.5~6.8 CFM
- Noise Level: 22~25 dB(A)
- Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  - Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  - Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
- Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
- Overall Wire Length: 1.5-inch
Weight: 0.4 oz (estimated shipping weight 5 oz)
Condition: (Subject to Availability)
- SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller repackaged.
- SKU ______E - Excess Inventory, not been used, may have signs of age.
- SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
- SKU ______O - Open Box, unused (pulled from unused PDE Technology External SCSI Enclosure)
- SKU ______R - Refurbished to working condition.
- SKU ______U - Used, may have signs of cosmetic wear
Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
For used with or pulled from: (Applications for reference only)
- The T&T MW-410M12C is a 7-blade aerodynamic high-pressure impeller wheels, integrated automated locked-rotor protection, reverse-polarity protection, and low-vibration mounting performance
  - Application:
    - Motherboard chipsets, VRM heatsinks, and small IPC single-board computers
    - Enterprise network switch stacks, routers, and 1U/2U server node compartments
    - Network Attached Storage (NAS) array enclosures and external HDD arrays
    - 3D printer hot-end assembly cooling, CCTV DVR boxes, and micro industrial power supply units (PSUs)
- MW-410M12C Part Number Breakdown:
  - 'MW' Product Series designation (Standard DC Brushless Axial Tubeaxial Fan)
  - '4' Frame Width indicator (Represents a 40mm outer dimension)
  - '10' Frame Thickness/Depth indicator (Represents a slim 10mm profile)
  - 'M' Speed Performance Level code (L = Low Speed / Ultra-Quiet; compared to M for Medium and H for High)
  - '12' Voltage Input rating (Operates on a standard 12V DC rail)
  - 'C' Internal factory design generation or connector variation code
- Pulled from Dell Optiplex SFF Computer Power Supplies.
- Serial Number Available or Sold:
  - SN 0099814 Used
  - SN 0111304 Used
  - SN 0111305 Used
  - SN 0111306 Used
  - SN 0111307 Used
  - SN 0111309 Used
  - SN 0111315 Used
  - SN 0111317 Used
  - SN 0111318 Used
  - SN 0111319 Used
  - SN 0111320 Used
  - SN 0111321 Used
  - SN 0111322 Used
  - SN 0111327 Used
  - SN 0111331 Used
  - SN 0111333 Used
  - SN 0111334 Used
  - SN 0111338 Used
  - SN 0111340 Used
  - SN 0111342 Used
  - SN 0111343 Used
  - SN 0111344 Used
  - SN 0111345 Used
