Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

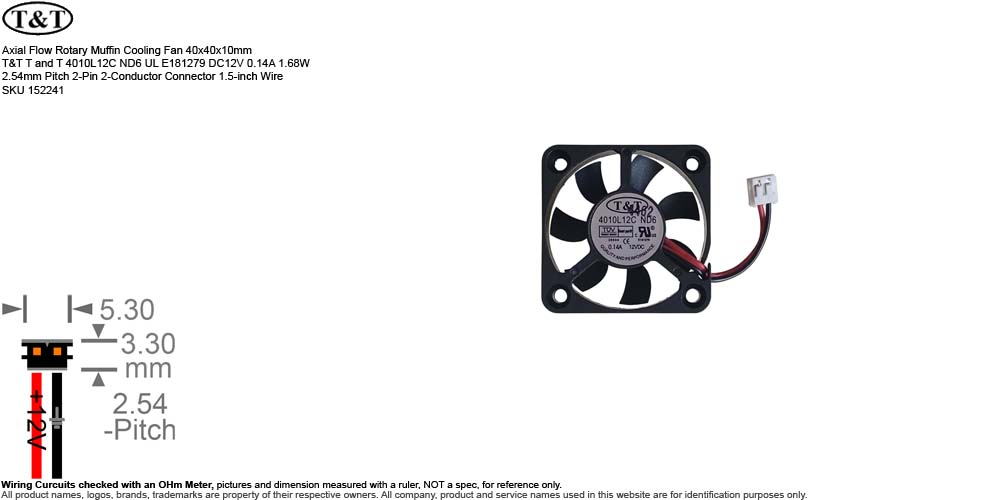

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm T&T T and T 4010L12C ND6 UL E181279 DC12V 0.14A 1.68W 2.54mm Pitch 2-Pin 2-Conductor Connector 1.5-inch Wire SKU 152241
• Manufacturer: Boyd (ShenZhen) Thermal Systems Ltd (according to UL File Number)
• Brand Name or Distributor: T&T
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • T&T 4010L12C ND6
  • Seller's SKU 152241
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x10mm
  • Power Rating: DC12V 0.14A 1.68W
  • Bearing: Sleeve Bearing
  • Speed: 2,500~3.500 RPM
  • Air Flow: 3.5~4.5 CFM
  • Noise Level: 18~22 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 1.5-inch
• Weight: 0.4 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, unused (pulled from unused PDE Technology External SCSI Enclosure)
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (Applications for reference only)
  • The T&T 4010L12C ND6 Features & Applications:
    • Compact profile, exceptionally low power usage minimizing strain on motherboard buses, high-density plastic frame constructed to dampen micro-vibrations, and a standard 2-wire / 2-pin interface
    • Crucial thermal relief inside highly constrained locations. Frequently found inside network routers, small-scale network switches, CCTV DVRs, 3D printer hotends/casing assemblies, mini PCs, and 1U server chassis internal brackets
  • 4010L12C ND6 Part Number Breakdown:
    • '40' Frame Diameter 40 mm width and height
    • '10' Frame Thickness 10 mm depth (ultra-thin profile)
    • 'L' Speed Code Low Speed (Quiet operations)
    • '12' Operating Voltage 12V DC
    • 'C' Bearing Type Sleeve Bearing (Cost-efficient, low noise)
    • 'ND6' Internal Manufacturing Spec Factory termination code (Signifies standard 2-Wire, 2-Pin configuration and connector pitch)
  • Pulled from Dell Optiplex SFF Computer Power Supplies.
  • Serial Number Available or Sold:
    • SN 0111303 Used
    • SN 0111316 Used
    • SN 0111330 Used
    • SN 0111336 Used
    • SN 0111339 Used
    • SN 0111347 Used
    • SN 0111348 Used
