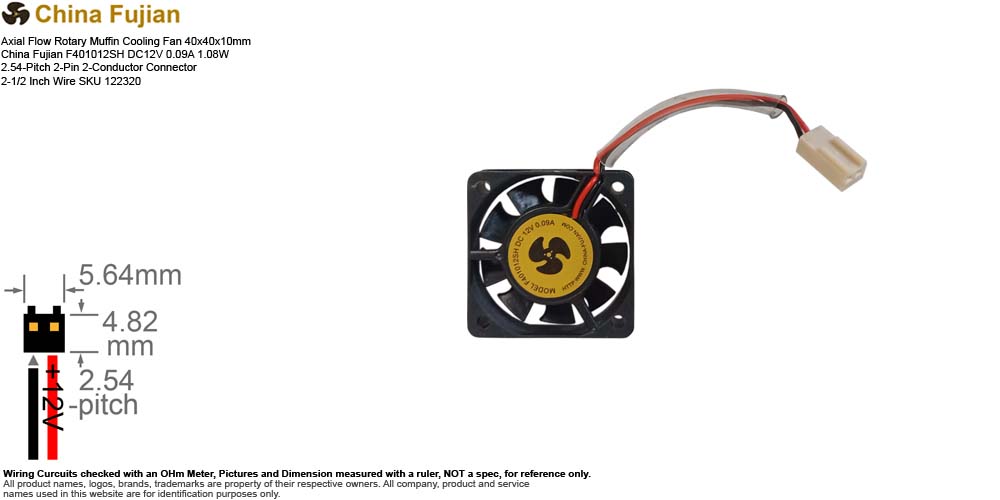

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm China Fujian F401012SH DC12V 0.09A 1.08W 2.54-Pitch 2-Pin 2-Conductor Connector 2-1/2 Inch Wire SKU 122320
• Manufacturer: China Fujian
• Brand or Distributor:
  • China Fujian
• Model:
  • China Fujian F401012SH
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x10mm
  • Power Rating: DC12V 0.09A 1.08W
  • Bearing: Sleeve Bearing
  • Speed: 6,000~6,600 RPM
  • Air Flow: 5.5~6.4 CFM
  • Noise Level: 26~35 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection:  2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 2.5-inch
• Weight: 0.5 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, Pulled from unused External SCSI Enclosure
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • The China Fujian F401012SH is a compact, brushless DC axial cooling fan engineered primarily for electronics thermal management. It belongs to the common 4010 form factor class, making it a drop-in replacement or design choice for space-constrained cooling.
  • F401012SH Part Number Breakdown:
    • 'F' Describes the fan design type (typically Fan or Axial Flow design)
    • '40' The length and width of the frame (40 mm x 40 mm)
    • '10' The depth/thickness of the frame (10 mm)
    • '12' the nominal operating voltage (12V DC)
    • 'S' Indicates the bearing architecture, specifying a Sleeve Bearing.
    • 'H' Denotes the speed/performance tier, representing High Speed (relative to this model's frame size)
  • Pulled from Generic 150W AC DC Laptop Charger
  • Serial Number Available or Sold:
    • SN 0111808 Used
