Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

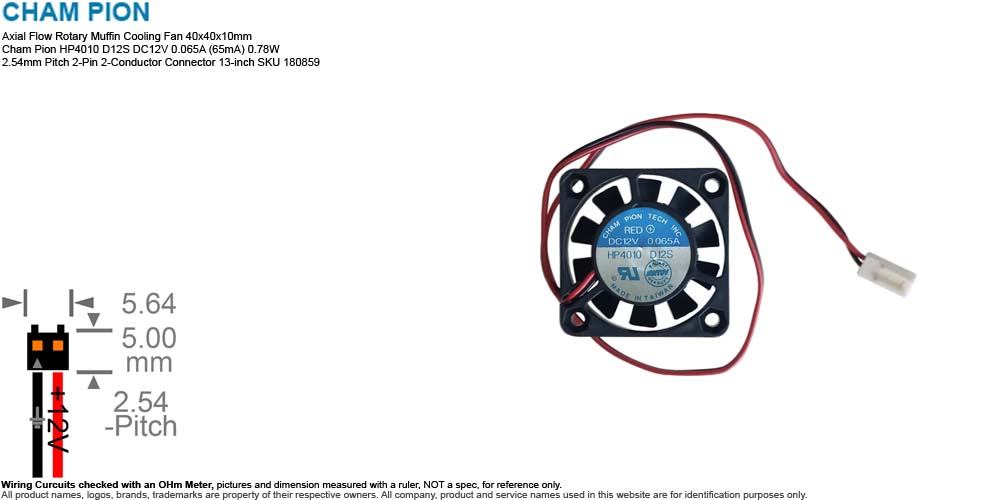

• Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm Cham Pion HP4010 D12S DC12V 0.065A (65mA) 0.78W 2.54mm Pitch 2-Pin 2-Conductor Connector 13-inch SKU 180859
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor:
  • Cham Pion
• Model:
  • Cham Pion HP4010 D12S
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 40x40x10mm
  • Power Rating: DC12V 0.065A (65mA) 0.78W
  • Bearing: Sleeve Bearing
  • Speed: 4,400~6,200 RPM
  • Air Flow: 4.3~6.8 CFM
  • Noise Level: 13.3~26 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection:  2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 13-inch
• Weight: 0.6 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, Pulled from unused External SCSI Enclosure
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
• For used with or pulled from: (for reference only)
  • The Cham Pion HP4010 D12S is a compact, high-quality 12V DC brushless axial cooling fan measuring 40mm x 40mm x 10mm. It is widely trusted for tight thermal management requirements across electronic, networking, and legacy compute environments.
  • HP4010 D12S Part Number Breakdown:
    • 'HP' High-Performance designator or manufacturer internal lineage code.
    • '4010' Specifies the overall size: 40mm width/height by 10mm thickness.
    • 'D' DC (Direct Current) input voltage.
    • '12' Operates on a standard 12-Volt power rail.
    • 'S' Sleeve Bearing configuration (as opposed to "B" for dual-ball bearings).
  • Pulled from P.D.E. Technology External SCSI Enclosure CF-751
  • Serial Number Available or Sold:
    • SN 0113114 Unused Open Box
    • SN 0113115 Unused Open Box
    • SN 0113116 Unused Open Box
    • SN 0113117 Unused Open Box
