Axial Flow Rotary Muffin Cooling Fan 40x40x10mm
Axial Flow Rotary Muffin Cooling Fan 40x40x10mm
China Fujian F401012SH DC12V 0.09A 1.08W
2.54-Pitch 2-Pin 2-Conductor Connector 2-1/2 Inch Wire
SKU 122320
FN-4010-xxx

Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

  • Description: Axial Flow Rotary Muffin Cooling Fan 40x40x10mm China Fujian F401012SH DC12V 0.09A 1.08W 2.54-Pitch 2-Pin 2-Conductor Connector 2-1/2 Inch Wire SKU 122320
  • Manufacturer: China Fujian
  • Brand or Distributor:
    • China Fujian
  • Model:
    • China Fujian F401012SH
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 40x40x10mm
    • Power Rating: DC12V 0.09A 1.08W
    • Bearing: Sleeve Bearing
    • Speed: 6,000~6,600 RPM
    • Air Flow: 5.5~6.4 CFM
    • Noise Level: 26~35 dB(A)
    • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Connection:  2.54mm Pitch 2-Pin 2-Conductor Connector
    • Overall Wire Length: 2.5-inch
  • Weight: 0.5 oz (estimated shipping weight 5 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
    • SKU ______O - Open Box, Pulled from unused External SCSI Enclosure
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may with signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
  • For used with or pulled from: (for reference only)
    • The China Fujian F401012SH is a compact, brushless DC axial cooling fan engineered primarily for electronics thermal management. It belongs to the common 4010 form factor class, making it a drop-in replacement or design choice for space-constrained cooling.
    • F401012SH Part Number Breakdown:
      • 'F' Describes the fan design type (typically Fan or Axial Flow design)
      • '40' The length and width of the frame (40 mm x 40 mm)
      • '10' The depth/thickness of the frame (10 mm)
      • '12' the nominal operating voltage (12V DC)
      • 'S' Indicates the bearing architecture, specifying a Sleeve Bearing.
      • 'H' Denotes the speed/performance tier, representing High Speed (relative to this model's frame size)
    • Pulled from Generic 150W AC DC Laptop Charger
    • Serial Number Available or Sold:
      • SN 0111808 Used

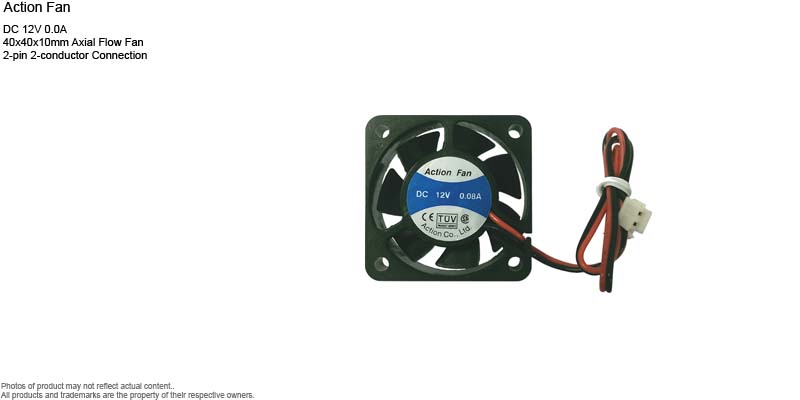

Axial Flow Fan
Action Fan
40x40x10mm
DC 12V 0.08A
FN-4010-xxx

Features:

  • Manufacturer: Action Co., Ltd.
  • Part Number: N/A
  • Design: Axial Flow Fan
  • Size 40x40x10mm
  • Bearing: Not Specified
  • Power Rating: DC 12V 0.08A
  • Connector: 2-pin 2-conductor Connector
  • Wire Length: 10-inch
  • Condition: New, pulled from unsold hard drive tray. Might have signs of cosmetic wear (on the screw holes)
  • Package: Non-retail packaging, in unprinted box or plastic bag.
  • For use with or saved from: (for reference only)
